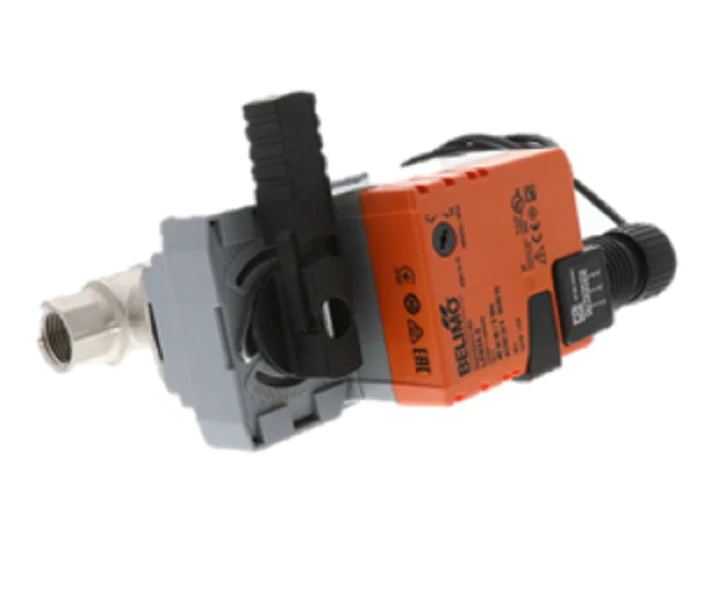

Belimo B213+LRB24-3 Valve Assembly
The Belimo B213+LRB24-3 is a precision-engineered 2-way characterized control valve (CCV) assembly designed for high-performance HVAC water applications. Featuring a 1/2 inch NPT connection and a 4.7 Cv rating, this assembly utilizes stainless steel trim and a specialized Tefzel characterizing disc to ensure a true equal percentage flow characteristic. This design prevents the common hunting issues found in standard ball valves, maintaining loop stability in both chilled and hot water systems. The paired LRB24-3 actuator provides 45 in-lb of torque and on/off or floating point control, operating on either 24VAC or 24VDC. With a non-spring return operation, it is ideal for applications where the valve position must be maintained during a power loss. The low-power consumption and brushless DC motor technology ensure long-term reliability in demanding hydronic control systems.
Key Benefits:
- Precise Flow Control: The stainless steel ball and stem combined with a characterizing disc eliminate flow surges and provide accurate linear or equal percentage modulation.
- High Close-off Pressure: Provides a 200 psi close-off rating, ensuring zero leakage and improved system efficiency under high differential pressures.
- Easy Installation: The LRB24-3 actuator features a simple direct-coupled universal neck design, reducing labor time during field replacement or new installs.
- Durable Construction: Built with a forged brass body and EPDM O-rings for compatibility with various water chemistries and temperatures.
Common Questions:
What is the difference between this CCV and a standard globe valve?
The Belimo B213+LRB24-3 offers a higher Cv per pipe size and superior close-off capabilities compared to traditional globe valves, all while maintaining a smaller footprint and lower power requirements.
Can the LRB24-3 be manually overridden?
Yes, the actuator features a manual override button on the housing, allowing technicians to manually position the 1/2 inch valve during commissioning or power outages.
Is this assembly suitable for steam applications?
No, this specific 2-way valve assembly is designed for water and glycol solutions. For steam applications, a valve with higher temperature ratings and specific seal kits is required.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $229.99
-65%$229.99
$80.50Belimo B213+LRB24-3 Valve Assembly
