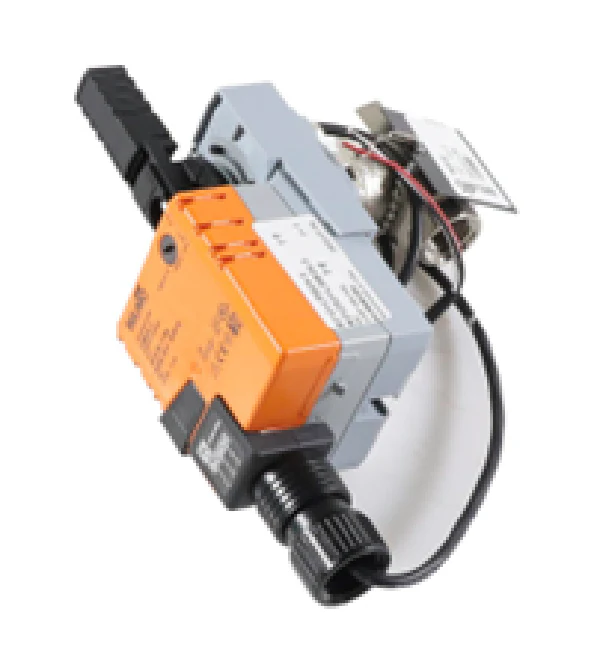

Belimo B212+LRB24-3 Valve Assembly
The Belimo B212+LRB24-3 is a precision-engineered 2-way characterized control valve (CCV) assembly designed for high-performance hydronic control in HVAC systems. This 1/2-inch assembly features a robust stainless steel ball and stem to resist scaling and corrosion, making it ideal for air handling units, VAV box reheat coils, and fan coil units. The integrated LRB24-3 non-spring return actuator delivers 45 in-lb of torque, providing reliable on/off or floating point control via a 24Vac/dc power supply. With a Cv rating of 3.0 and a 600 psi body pressure rating, this NPT female connection valve utilizes a specializedizing disc to ensure an equal percentage flow characteristic. This design prevents control loop hunting and stabilizes discharge temperatures, ensuring the Belimo valve actuator assembly operates efficiently in variable flow environments. Technicians can rely on the maintenance-free design and the NEMA 2 rated enclosure for sustained performance in demanding building automation applications.
Key Benefits:
- Equal Percentage Flow: The Tefzel characterized disc provides linear heat output, optimizing coil performance and energy efficiency.
- High Durability: Stainless steel trim and a nickel-plated brass body ensure longevity in chilled or hot water systems with up to 60% glycol.
- Zero Leakage: Rated for 0% leakage (ANSI Class VI) to prevent thermal energy waste during off-cycles.
- Flexible Control: Supports both on/off and floating control signals, compatible with most 24V BAS controllers.
- Ease of Installation: Pre-assembled Belimo CCV for immediate field mounting, reducing labor time for contractors.
Common Questions:
How do I wire the LRB24-3 for floating control?
The actuator uses a 3-wire connection: Terminal 1 is Common, Terminal 2 is Hot (24V), and Terminal 3 receives the control signal to drive the valve open or closed.
Can this valve be installed in any orientation?
While the valve can be mounted in various positions, it is recommended to install it with the actuator above the horizontal plane of the pipe to prevent condensate or sediment damage.
What is the maximum fluid temperature for the B212?
This assembly is rated for a fluid temperature range of 0°F to 250°F (-18°C to 120°C), suitable for both heating and cooling loops.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $219.66
-65%$219.66
$76.88Belimo B212+LRB24-3 Valve Assembly
The Belimo B212+LRB24-3 is a precision-engineered 2-way characterized control valve (CCV) assembly designed for high-performance hydronic control in HVAC systems. This 1/2-inch assembly features a robust stainless steel ball and stem to resist scaling and corrosion, making it ideal for air handling units, VAV box reheat coils, and fan coil units. The integrated LRB24-3 non-spring return actuator delivers 45 in-lb of torque, providing reliable on/off or floating point control via a 24Vac/dc power supply. With a Cv rating of 3.0 and a 600 psi body pressure rating, this NPT female connection valve utilizes a specializedizing disc to ensure an equal percentage flow characteristic. This design prevents control loop hunting and stabilizes discharge temperatures, ensuring the Belimo valve actuator assembly operates efficiently in variable flow environments. Technicians can rely on the maintenance-free design and the NEMA 2 rated enclosure for sustained performance in demanding building automation applications.
Key Benefits:
- Equal Percentage Flow: The Tefzel characterized disc provides linear heat output, optimizing coil performance and energy efficiency.
- High Durability: Stainless steel trim and a nickel-plated brass body ensure longevity in chilled or hot water systems with up to 60% glycol.
- Zero Leakage: Rated for 0% leakage (ANSI Class VI) to prevent thermal energy waste during off-cycles.
- Flexible Control: Supports both on/off and floating control signals, compatible with most 24V BAS controllers.
- Ease of Installation: Pre-assembled Belimo CCV for immediate field mounting, reducing labor time for contractors.
Common Questions:
How do I wire the LRB24-3 for floating control?
The actuator uses a 3-wire connection: Terminal 1 is Common, Terminal 2 is Hot (24V), and Terminal 3 receives the control signal to drive the valve open or closed.
Can this valve be installed in any orientation?
While the valve can be mounted in various positions, it is recommended to install it with the actuator above the horizontal plane of the pipe to prevent condensate or sediment damage.
What is the maximum fluid temperature for the B212?
This assembly is rated for a fluid temperature range of 0°F to 250°F (-18°C to 120°C), suitable for both heating and cooling loops.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
