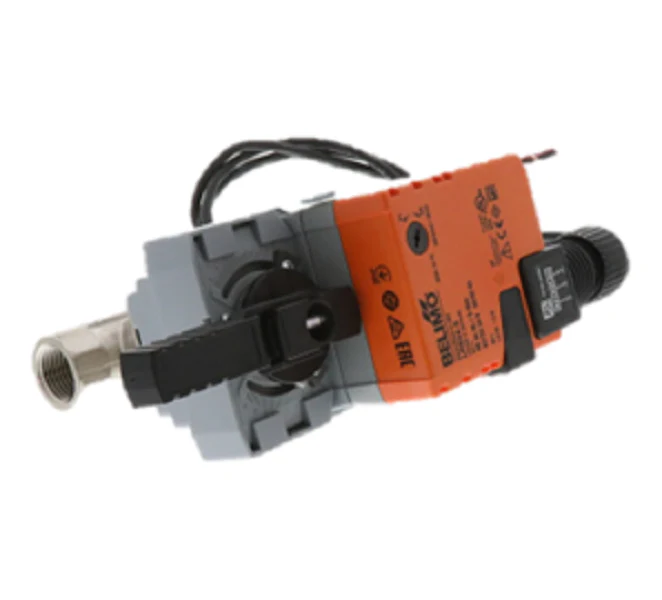

Belimo B211+LRB24-3 Valve Assembly
The Belimo B211+LRB24-3 is a high-performance 2-way characterized control valve (CCV) assembly engineered for precise regulation in hydronic systems. This 1/2" NPT valve features a stainless steel ball and stem, ensuring long-term durability and resistance to corrosion in demanding HVAC environments. With a Cv rating of 1.9 and a specialized characterizing disc, it provides an equal percentage flow characteristic, effectively preventing control loop hunting and optimizing energy consumption in air handling units and fan coil applications.
The assembly is powered by the LRB24-3 non-spring return actuator, delivering 45 in-lb of torque for reliable on/off or floating control. Operating on 24VAC/DC, this brushless motor actuator is designed for maintenance-free service. The Belimo B211 valve assembly is ideal for VAV box re-heat coils and bypass loops, offering a 0% leakage rate through Port A to AB. This field-proven HVAC actuator and valve combo ensures stable temperature control and streamlined installation for technical contractors managing building automation systems.
Key Benefits- Equal Percentage Flow: The integrated Tefzel characterizing disc maintains linear heat output for superior temperature stability.
- Corrosion Resistance: Heavy-duty stainless steel trim and a nickel-plated brass body withstand harsh fluid conditions up to 250°F.
- High Close-Off: Rated for a 200 psi close-off pressure, preventing unwanted bypass in variable flow systems.
- Simplified Wiring: The LRB24-3 supports parallel connection and includes a 3ft plenum-rated cable for efficient field integration.
Is this valve suitable for glycol systems?
Yes, the Belimo B211 is compatible with chilled or hot water and up to 60% glycol solutions.
Can I manually override the actuator position?
The LRB24-3 features an external manual override push button to allow for manual positioning during commissioning or power loss.
Does this assembly provide fail-safe operation?
No, this specific model is a non-spring return actuator; it will maintain its last position upon loss of power.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
