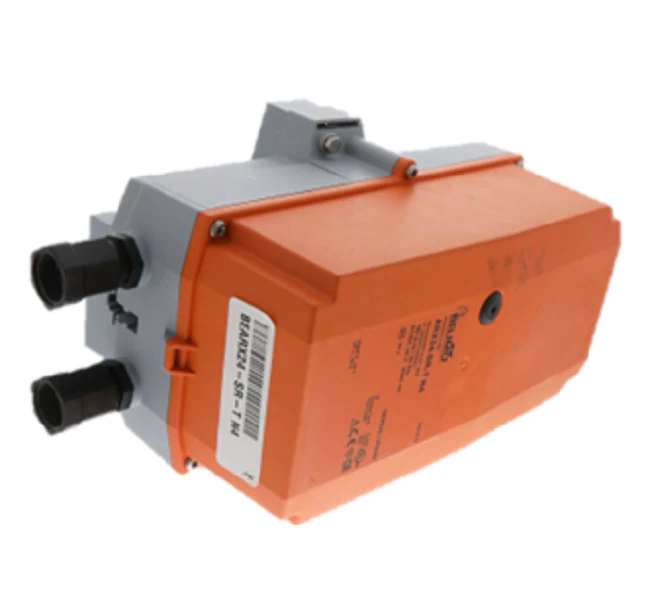

Belimo ARX24-SR-T N4 Actuator
The Belimo ARX24-SR-T N4 is a non-spring return actuator engineered for high-torque applications requiring precise proportional control. Operating on a 24VAC/DC power supply, this modulating actuator accepts a 2-10VDC control signal to deliver 360 in-lb of torque with a fixed 90-second run time. Designed for demanding environments, the NEMA 4X housing provides superior protection against corrosion and moisture in outdoor or wash-down mechanical sites. The unit features built-in overload protection and terminal strip connections for streamlined field wiring. Its brushless DC motor ensures consistent positioning and long-term reliability in heavy-duty damper or valve assemblies. This HVAC actuator supports a universal clamp design, facilitating easy installation on various shaft diameters. By utilizing Belimo technology, contractors can ensure stable system performance and accurate airflow or hydronic regulation in complex industrial control loops.
Key Benefits
- NEMA 4X Protection: Rugged enclosure rated for wet, dusty, and outdoor environments.
- High Torque Output: Delivers 360 in-lb (40 Nm) to drive large dampers or high-pressure valves.
- Proportional Accuracy: Reliable 2-10VDC modulating control for precise system feedback.
- Ease of Integration: Terminal strip wiring simplifies field installation and reduces labor time.
- Electronic Protection: Automatic shut-off if the stroke is obstructed prevents motor burnout.
Common Questions
Is the ARX24-SR-T N4 suitable for outdoor installation?
Yes, the NEMA 4X enclosure is specifically designed to protect against rain, sleet, snow, and external ice formation.
What control signal does this actuator require?
This model utilizes a standard 2-10VDC modulating signal for proportional positioning.
Does this unit have a fail-safe position during power loss?
No, this is a non-spring return (NSR) actuator; it will maintain its last position upon loss of power.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
