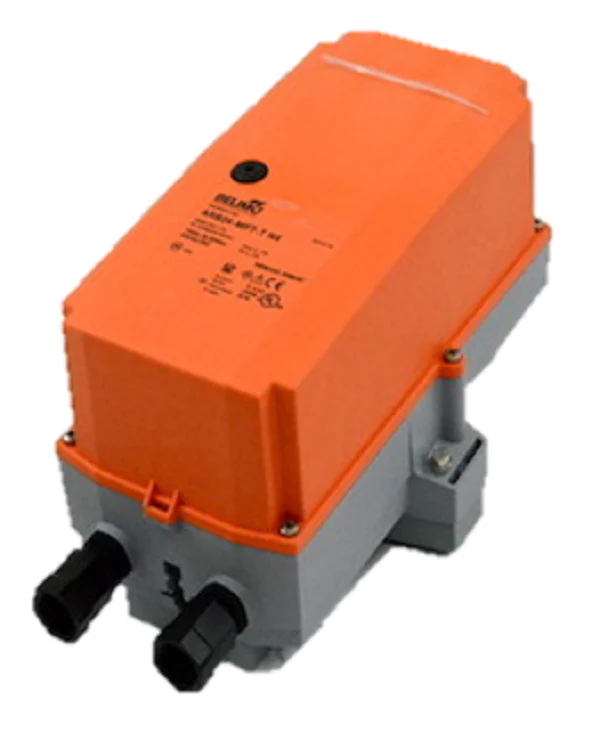

Belimo ARX24-MFT-T N4 Actuator
The Belimo ARX24-MFT-T N4 is a heavy-duty non-spring return actuator engineered for precise control of dampers and valves in demanding environments. Delivering 160 in-lb of torque, this 24V HVAC actuator utilizes Multi-Function Technology (MFT) to allow for field-customizable control signals, including 0-10 VDC modulation, PWM, or floating point. The NEMA 4 (IP66) rated enclosure ensures reliable operation in wash-down areas or outdoor installations by protecting internal components from moisture and debris. Designed for seamless integration into building automation systems, it features a terminal strip for simplified field wiring. This robust unit is compatible with various shaft sizes and provides consistent damper automation performance regardless of voltage fluctuations. Technicians can rely on the ARX24-MFT-T N4 for high-torque applications requiring durable industrial valve control and versatile configuration options in the field.
Key Benefits
- High Torque Output: Provides 160 in-lb (18 Nm) for reliable operation of larger damper blades and valves.
- Multi-Function Technology: Enables field-adjustable parameters for control signals, feedback, and running time.
- NEMA 4 Enclosure: Rugged weatherproof actuator housing designed for outdoor use and harsh environments.
- Input Flexibility: Supports 24V AC/DC power supplies with MFT programming capabilities.
- Manual Override: External push-button allows for manual positioning during commissioning or system testing.
Common Questions
How do I change the control signal on a Belimo ARX24-MFT-T N4?
The control signal can be adjusted using the Belimo PC-Tool or the ZTH US handheld tool, allowing the MFT actuator to be reconfigured for different voltage inputs or feedback requirements.
Is this actuator suitable for outdoor installations without an extra shield?
Yes, the NEMA 4 rating indicates that the housing is designed to protect against rain, snow, and hose-directed water, making it suitable for exterior HVAC mechanical systems.
What happens if the power fails on this model?
As a non-spring return actuator, the ARX24-MFT-T N4 will maintain its last position upon loss of power until electrical service is restored.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
