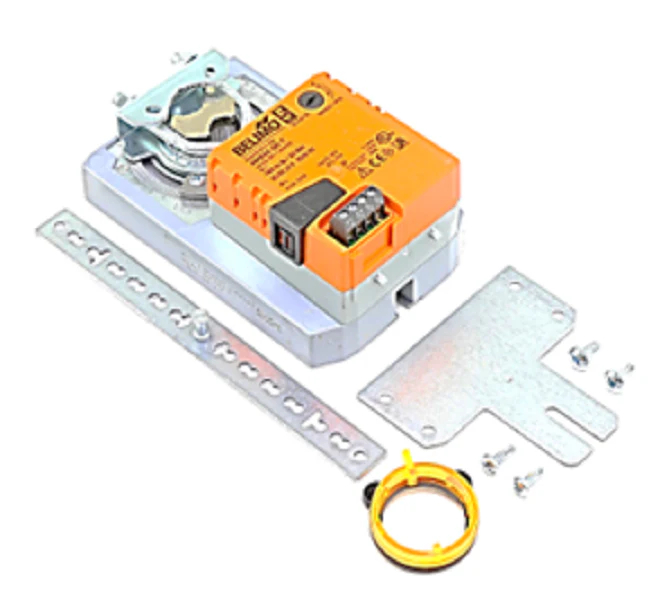

Belimo AMX24-SR-T Actuator
Engineered for high-torque applications in commercial HVAC systems, the Belimo AMX24-SR-T Actuator provides a robust 180 in-lb torque output for the efficient proportional modulation of dampers up to 45 sq. ft. This non-spring return actuator utilizes a brushless DC motor controlled by an Application Specific Integrated Circuit (ASIC), ensuring precise 2-10 VDC modulating control and a constant 95-second run time regardless of load. Designed for versatile field installation, the unit mounts directly to damper shafts up to 1.05 inches using a universal clamp, eliminating the need for complex linkages. The integrated screw terminal strip simplifies wiring for 24VAC/DC power, while the 2-10 VDC feedback signal allows for accurate position monitoring or master-slave synchronization. Technicians can utilize the external push-button manual override for quick system testing, and the electronic overload protection prevents motor damage at all angles of rotation, making it a reliable standard for modernized building automation systems.
Key Benefits:- High Torque Output: Delivers 180 in-lb (20 Nm) to handle large damper surfaces without mechanical failure.
- Precision Control: Responsive 2-10 VDC operating range with 100 k? input impedance for stable signal processing.
- Simplified Wiring: Features a high-integrity screw terminal strip for secure electrical connections in the field.
- Maintenance-Free Operation: Brushless DC motor technology eliminates the need for routine internal servicing.
- Flexible Mounting: Universal shaft clamp centers on common diameters, including 1/2-inch and 3/4-inch shafts.
Can the AMX24-SR-T handle a 4-20 mA control signal?
Yes, by adding a 500 ? resistor (ZG-R01), this actuator can be converted from a 2-10 VDC signal to a standard 4-20 mA proportional input.
Is this actuator suitable for outdoor use?
The standard Belimo AMX24-SR-T is rated for NEMA 1/IP22. For outdoor or wash-down applications, an additional NEMA 4X weather shield or the N4 series variant is required.
Does this unit support manual positioning during power loss?
While it is a non-spring return model, it includes a manual override button that disengages the gear train, allowing for manual damper positioning during commissioning.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $368.68
-65%$368.68
$129.04Belimo AMX24-SR-T Actuator
