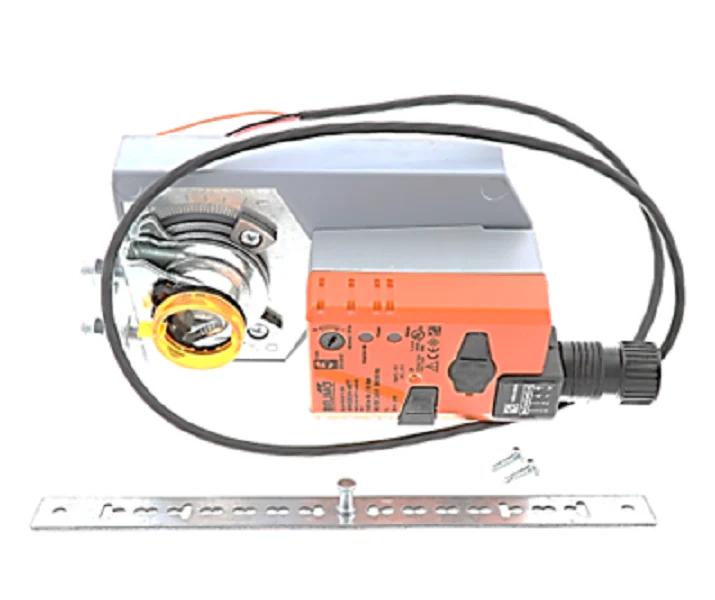

Belimo AMQB24-MFT Actuator
The Belimo AMQB24-MFT Actuator is a high-torque, non-spring return solution engineered for demanding HVAC damper applications requiring precise control and rapid response. Delivering 140 in-lb [16 Nm] of torque, this direct coupled actuator utilizes Multi-Function Technology (MFT), allowing for a fully programmable 2-10 VDC operating range, or 4-20 mA with a 500 Ohm resistor. Built with a brushless DC motor and governed by an Application Specific Integrated Circuit (ASIC), it ensures constant running times independent of load and provides comprehensive overload protection throughout its 0° to 95° rotation. This 24V motor actuator is designed for efficiency, consuming only 1.5W in holding mode while offering a fast 7-second runtime for 90° travel. Its universal circular clamp accommodates shafts from 1/2" to 1.05", making it a versatile choice for retrofit or new commercial HVAC damper control projects.
Key Benefits- Precision Modulation: Integrated multi-function technology allows for customizable control signals, including proportional, floating point, and on/off.
- Fast-Acting Performance: Features a 7-second running time for quick system response in critical air handling applications.
- Superior Reliability: The brushless DC motor eliminates brush wear, while ASIC-driven digital rotation sensing prevents stall-related damage.
- Flexible Installation: Universal shaft clamp and 3-foot plenum rated cable simplify field mounting on various damper configurations.
- Efficient Power Management: Reduced power consumption in the holding position lowers the total transformer sizing requirement (26 VA).
Can the AMQB24-MFT be used with a 4-20 mA signal?
Yes, the actuator is compatible with 4-20 mA control signals by adding an external 500 Ohm resistor (standard for MFT series integration).
Does this actuator have a manual override?
Yes, it is equipped with an external manual override push button that disengages the gear train for manual damper positioning during commissioning.
Is this model suitable for fail-safe applications?
No, the Belimo AMQB24-MFT is a non-spring return actuator, meaning it will maintain its last position upon loss of power.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $494.77
-65%$494.77
$173.17Belimo AMQB24-MFT Actuator
The Belimo AMQB24-MFT Actuator is a high-torque, non-spring return solution engineered for demanding HVAC damper applications requiring precise control and rapid response. Delivering 140 in-lb [16 Nm] of torque, this direct coupled actuator utilizes Multi-Function Technology (MFT), allowing for a fully programmable 2-10 VDC operating range, or 4-20 mA with a 500 Ohm resistor. Built with a brushless DC motor and governed by an Application Specific Integrated Circuit (ASIC), it ensures constant running times independent of load and provides comprehensive overload protection throughout its 0° to 95° rotation. This 24V motor actuator is designed for efficiency, consuming only 1.5W in holding mode while offering a fast 7-second runtime for 90° travel. Its universal circular clamp accommodates shafts from 1/2" to 1.05", making it a versatile choice for retrofit or new commercial HVAC damper control projects.
Key Benefits- Precision Modulation: Integrated multi-function technology allows for customizable control signals, including proportional, floating point, and on/off.
- Fast-Acting Performance: Features a 7-second running time for quick system response in critical air handling applications.
- Superior Reliability: The brushless DC motor eliminates brush wear, while ASIC-driven digital rotation sensing prevents stall-related damage.
- Flexible Installation: Universal shaft clamp and 3-foot plenum rated cable simplify field mounting on various damper configurations.
- Efficient Power Management: Reduced power consumption in the holding position lowers the total transformer sizing requirement (26 VA).
Can the AMQB24-MFT be used with a 4-20 mA signal?
Yes, the actuator is compatible with 4-20 mA control signals by adding an external 500 Ohm resistor (standard for MFT series integration).
Does this actuator have a manual override?
Yes, it is equipped with an external manual override push button that disengages the gear train for manual damper positioning during commissioning.
Is this model suitable for fail-safe applications?
No, the Belimo AMQB24-MFT is a non-spring return actuator, meaning it will maintain its last position upon loss of power.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
