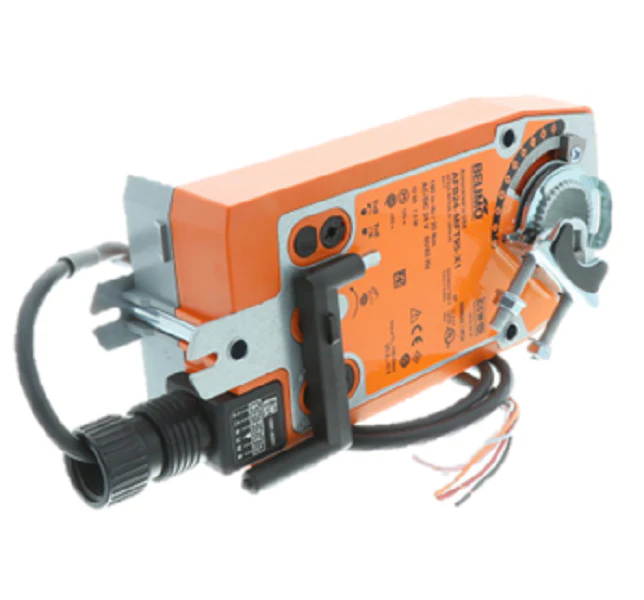

Belimo AFX24-MFT95-X1 Actuator
The Belimo AFX24-MFT95-X1 is a high-torque, spring-return actuator designed for reliable control of dampers and valves in demanding HVAC environments. Operating on a 24V AC/DC power supply, this Multi-Function Technology (MFT) actuator is specifically configured for 0 to 135 ohm input signals, making it an ideal drop-in solution for legacy Honeywell systems or contemporary proportional control setups. With a robust 180 in-lb torque rating, the AFX24-MFT95-X1 ensures positive close-off against high static pressures. The mechanical spring return facilitates a fail-safe position upon power loss, a critical requirement for smoke, fire, or outside air isolation. This fail-safe actuator features a NEMA 2 (IP54) housing, supporting durability in mechanical rooms. Technicians can utilize the MFT platform to field-adjust parameters like running time and control signals, ensuring seamless integration with existing building automation systems (BAS) and optimizing airflow regulation across the terminal unit or air handler.
Key Benefits
- Precision Control: Utilizes Multi-Function Technology for accurate proportional control and custom field parameterization.
- Fail-Safe Reliability: Integrated mechanical spring-return mechanism ensures the system returns to a safe state during power interruptions.
- Legacy Compatibility: Pre-configured for 0-135 ohm resistive input, simplifying the replacement of older series 90 controllers.
- High Torque Output: Delivers 180 in-lb (20 Nm) of force, suitable for large surface area dampers and high-pressure valves.
- Brushless DC Motor: Employs microprocessor-controlled brushless technology for overcurrent protection and extended operational life.
Common Questions
How do I wire a Belimo AFX24-MFT95-X1 to a 0-135 ohm controller?
This model is factory-set for resistive input signals. Terminals 1 and 2 provide 24V power, while terminal 3 receives the signal from the 135-ohm potentiometer. Ensure the MFT configuration matches your specific controller's range for linear response.
Can the direction of the spring return be reversed?
Yes, the fail-safe direction (clockwise or counter-clockwise) is determined by the orientation of the actuator on the shaft. Use the provided universal clamp to secure the actuator based on the required fail position.
Is this actuator compatible with various shaft sizes?
The unit features a universal power coupling that accommodates standard round shafts and square shafts, typically ranging from 1/2" to 1.05".
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $595.90
-65%$595.90
$208.56Belimo AFX24-MFT95-X1 Actuator
The Belimo AFX24-MFT95-X1 is a high-torque, spring-return actuator designed for reliable control of dampers and valves in demanding HVAC environments. Operating on a 24V AC/DC power supply, this Multi-Function Technology (MFT) actuator is specifically configured for 0 to 135 ohm input signals, making it an ideal drop-in solution for legacy Honeywell systems or contemporary proportional control setups. With a robust 180 in-lb torque rating, the AFX24-MFT95-X1 ensures positive close-off against high static pressures. The mechanical spring return facilitates a fail-safe position upon power loss, a critical requirement for smoke, fire, or outside air isolation. This fail-safe actuator features a NEMA 2 (IP54) housing, supporting durability in mechanical rooms. Technicians can utilize the MFT platform to field-adjust parameters like running time and control signals, ensuring seamless integration with existing building automation systems (BAS) and optimizing airflow regulation across the terminal unit or air handler.
Key Benefits
- Precision Control: Utilizes Multi-Function Technology for accurate proportional control and custom field parameterization.
- Fail-Safe Reliability: Integrated mechanical spring-return mechanism ensures the system returns to a safe state during power interruptions.
- Legacy Compatibility: Pre-configured for 0-135 ohm resistive input, simplifying the replacement of older series 90 controllers.
- High Torque Output: Delivers 180 in-lb (20 Nm) of force, suitable for large surface area dampers and high-pressure valves.
- Brushless DC Motor: Employs microprocessor-controlled brushless technology for overcurrent protection and extended operational life.
Common Questions
How do I wire a Belimo AFX24-MFT95-X1 to a 0-135 ohm controller?
This model is factory-set for resistive input signals. Terminals 1 and 2 provide 24V power, while terminal 3 receives the signal from the 135-ohm potentiometer. Ensure the MFT configuration matches your specific controller's range for linear response.
Can the direction of the spring return be reversed?
Yes, the fail-safe direction (clockwise or counter-clockwise) is determined by the orientation of the actuator on the shaft. Use the provided universal clamp to secure the actuator based on the required fail position.
Is this actuator compatible with various shaft sizes?
The unit features a universal power coupling that accommodates standard round shafts and square shafts, typically ranging from 1/2" to 1.05".
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
