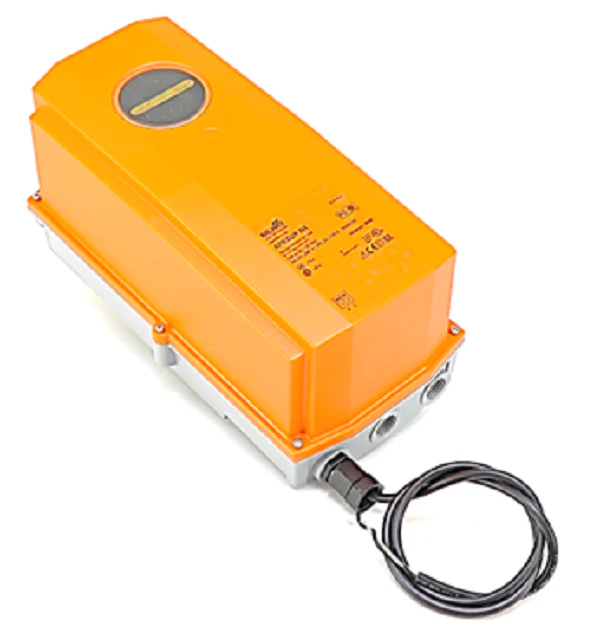

Belimo AFRXUPN4 Motor
The Belimo AFRXUPN4 is a heavy-duty spring return actuator designed for on/off control in demanding HVAC applications. Engineered for high-torque requirements, this 180 in-lb actuator provides reliable fail-safe operation for dampers and valves. The universal power supply allows it to operate on any voltage from 24 to 240 VAC, simplifying inventory for field technicians. Its NEMA 4X rated housing ensures durability in harsh environments, making it a standard choice for mechanical contractors working on industrial air handlers or large-scale dampers. The brushless DC motor technology prevents burnout and ensures consistent timing across the full range of motion. Installation is streamlined via a universal clamp that accommodates various shaft sizes, reducing the need for specialized HVAC replacement parts. For commercial HVAC systems, this unit offers the precision and ruggedness required to maintain pressure and airflow integrity during power loss sequences.
Key Benefits
- High Torque Output: Delivers 180 in-lb [20 Nm] for managing large dampers and high-pressure valves.
- Multi-Voltage Compatibility: Operates on 24V to 240V AC, eliminating the need for step-down transformers.
- Fail-Safe Reliability: Mechanical spring return ensures the damper moves to a safe position during power interruptions.
- Environmental Protection: NEMA 4X / IP66 enclosure permits installation in outdoor or corrosive environments.
- Manual Override: Includes a crank for manual positioning during commissioning or system testing.
Common Questions
What is the typical run time for the AFRXUPN4?
The motor drive time is approximately 75 seconds, while the spring return fail-safe closes in less than 20 seconds at ambient temperature.
Can this actuator be used in outdoor applications?
Yes, the Belimo AFRXUPN4 features a NEMA 4X housing, which provides protection against windblown dust, rain, and corrosion.
What shaft sizes is the universal clamp compatible with?
The standard clamp is designed for 1/2" to 1.05" round shafts or 3/8" to 3/4" square shafts.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
