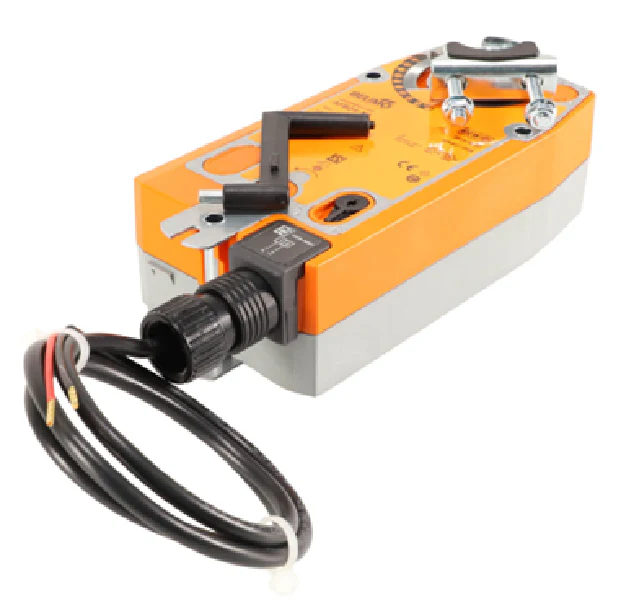

Belimo AFB24-X1 Actuator
The Belimo AFB24-X1 is a heavy-duty spring return damper actuator engineered for reliable fail-safe operation in commercial HVAC systems. Delivering a robust 180 in-lb torque, this unit is designed to drive dampers to a safe position during power loss, ensuring critical fire and smoke containment or system protection. Operating on a 24VAC/DC power supply, it features a brushless DC motor that provides precise on/off control while maintaining high energy efficiency. The direct-coupled mounting design allows for easy installation on 1/2-inch to 1.05-inch shafts without the need for complex linkages. Built with a rugged NEMA 2/IP54-rated housing, this 180 in-lb actuator is suitable for plenum applications and provides a mechanical position indicator for easy field verification. It also includes a manual override crank, allowing technicians to manually position the damper during commissioning or maintenance without compromising the fail-safe functionality.
Key Benefits- Fail-Safe Reliability: High-tension spring return ensures positive close-off on air-tight dampers during power interruptions.
- Universal Compatibility: Fits various damper shaft sizes and types, reducing the need for multiple stocking units.
- Overload Protection: Specifically designed to stall at any angle of rotation without the need for mechanical limit switches, extending service life.
- Quiet Operation: Brushless motor technology reduces audible noise to ?50 dB(A) during motor operation and 62 dB(A) during fail-safe.
- Plenum Rated: Meets UL 2043 requirements, making it safe for installation in air handling spaces and plenums.
What is the maximum damper area this actuator can handle?
While it depends on the damper's torque requirements (in-lb/sq. ft.), the Belimo AFB24-X1 typically handles dampers up to approximately 45 square feet, though manufacturers' specs should always be verified.
Can I link two AFB24-X1 actuators together for higher torque?
Yes, two units can be "piggybacked" on the same shaft using parallel wiring to provide up to 266 in-lb of torque for larger air-handling applications.
Does this unit support modulating 2-10V control?
The AFB24-X1 is a dedicated on/off actuator. For proportional or modulating control, a model like the AFB24-SR would be required.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $323.58
-65%$323.58
$113.25Belimo AFB24-X1 Actuator
The Belimo AFB24-X1 is a heavy-duty spring return damper actuator engineered for reliable fail-safe operation in commercial HVAC systems. Delivering a robust 180 in-lb torque, this unit is designed to drive dampers to a safe position during power loss, ensuring critical fire and smoke containment or system protection. Operating on a 24VAC/DC power supply, it features a brushless DC motor that provides precise on/off control while maintaining high energy efficiency. The direct-coupled mounting design allows for easy installation on 1/2-inch to 1.05-inch shafts without the need for complex linkages. Built with a rugged NEMA 2/IP54-rated housing, this 180 in-lb actuator is suitable for plenum applications and provides a mechanical position indicator for easy field verification. It also includes a manual override crank, allowing technicians to manually position the damper during commissioning or maintenance without compromising the fail-safe functionality.
Key Benefits- Fail-Safe Reliability: High-tension spring return ensures positive close-off on air-tight dampers during power interruptions.
- Universal Compatibility: Fits various damper shaft sizes and types, reducing the need for multiple stocking units.
- Overload Protection: Specifically designed to stall at any angle of rotation without the need for mechanical limit switches, extending service life.
- Quiet Operation: Brushless motor technology reduces audible noise to ?50 dB(A) during motor operation and 62 dB(A) during fail-safe.
- Plenum Rated: Meets UL 2043 requirements, making it safe for installation in air handling spaces and plenums.
What is the maximum damper area this actuator can handle?
While it depends on the damper's torque requirements (in-lb/sq. ft.), the Belimo AFB24-X1 typically handles dampers up to approximately 45 square feet, though manufacturers' specs should always be verified.
Can I link two AFB24-X1 actuators together for higher torque?
Yes, two units can be "piggybacked" on the same shaft using parallel wiring to provide up to 266 in-lb of torque for larger air-handling applications.
Does this unit support modulating 2-10V control?
The AFB24-X1 is a dedicated on/off actuator. For proportional or modulating control, a model like the AFB24-SR would be required.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
