Belimo 22UTH-53 Sensor
For demanding building automation projects, the Belimo 22UTH-53 Outdoor Humidity and Temperature Sensor provides professional-grade accuracy with the versatility of dual 4-20mA analog outputs. Engineered with a polymer capacitive sensor and a stainless steel wire mesh filter, this unit ensures reliable relative humidity monitoring even in harsh environments. The NEMA 4X / IP65 rated housing and integrated weather shield protect the sensitive electronics from UV radiation and precipitation, making it the standard choice for economizer control and outdoor air intake monitoring.
The 22UTH-53 is not limited to standard RH measurements; it features field-selectable outputs for dew point, enthalpy, and absolute humidity via onboard jumpers. This makes it an essential component for complex psychrometric calculations in high-efficiency HVACR systems. Designed for easy installation, it includes a pluggable spring-loaded terminal block and a 1/2" NPT conduit adapter. With four selectable temperature ranges (including -40 to 160°F and 0 to 100°F), technicians can precisely calibrate the signal to match the specific climatic requirements of the job site.
High-Volume Keywords:- Belimo 22UTH-53 sensor
- 4-20mA outdoor humidity sensor
- NEMA 4X HVAC sensor
- Relative humidity and temperature transmitter
- HVAC enthalpy sensor
- How to wire a Belimo 22UTH-53 for dew point measurement?
- What is the accuracy of the Belimo outdoor humidity sensor?
- Is the Belimo 22UTH-53 compatible with a 24V DC power supply?
- Multifunctional Output: Field-selectable measuring values including enthalpy and dew point for advanced air management.
- Rugged Durability: IP65 / NEMA 4X enclosure ensures long-term stability against moisture, dust, and UV exposure.
- Configurable Ranges: 4 selectable temperature measuring ranges allow for high-resolution integration with any BAS.
- Precision Sensing: Features a high-accuracy polymer-based capacitive element with ±2% RH accuracy.

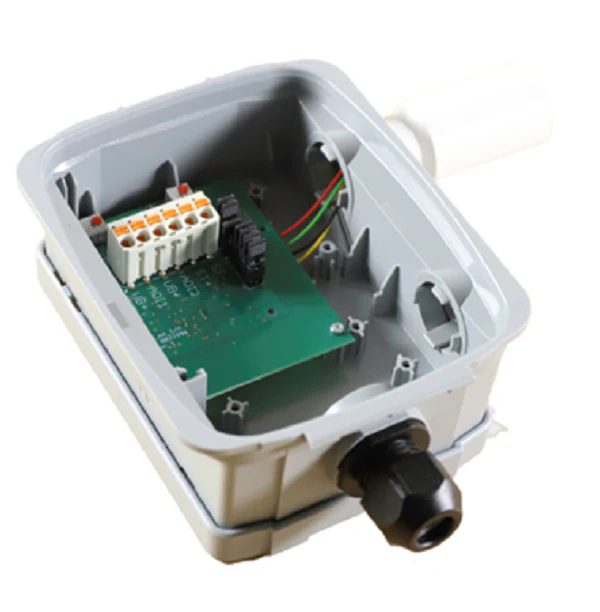

- Technician Friendly: Pluggable terminals and included mounting hardware streamline the installation process on roofs or exterior walls.
- Does this sensor require a separate weather shield? No, the Belimo 22UTH-53 comes standard with an integrated weather shield to protect the 2% accurate humidity element from direct solar gain and rain.
- Can I use this for absolute humidity? Yes, the absolute humidity range is adjustable at the transducer (0...50 g/m³ or 0...80 g/m³) via internal settings.
- What gauge wire should be used? The spring-loaded terminal block accepts up to 14 AWG [2.5 mm²] wire, though standard 18 AWG shielded twisted pair is recommended for most 4-20mA loop applications.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $283.84
-65%$283.84
$99.34Belimo 22UTH-53 Sensor
