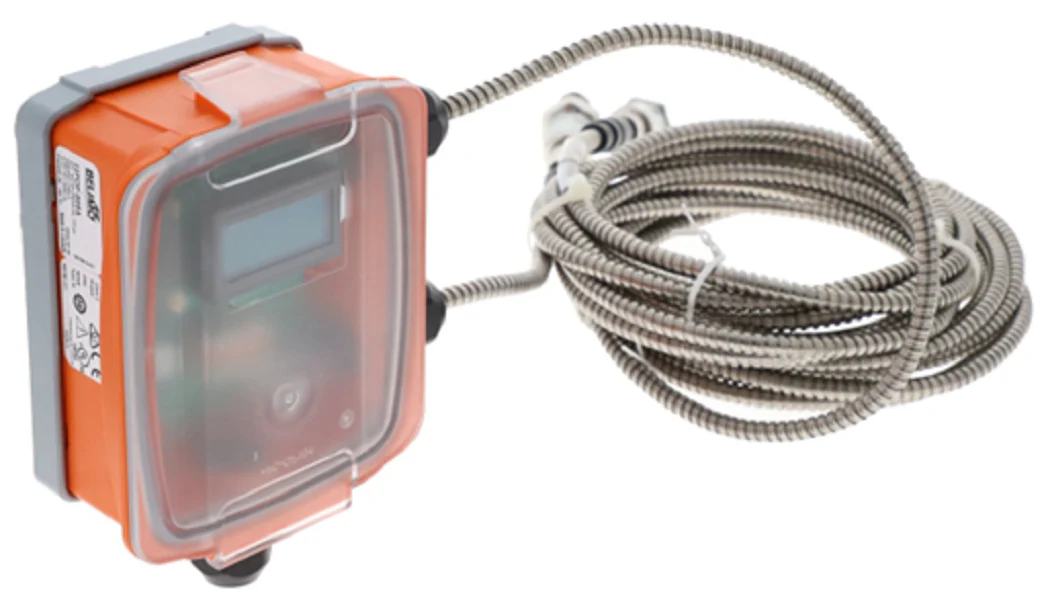

Belimo 22PDP-585A Sensor
The Belimo 22PDP-585A is a high-accuracy differential pressure sensor designed for monitoring and controlling liquids and gases in HVAC hydronic systems. Operating on a proportional 0-10 VDC or 4-20 mA output signal, this sensor provides precise pressure monitoring across a 0-100 psi range. Built with a rugged NEMA 4 / IP65 rated enclosure and stainless steel wetted parts, it handles demanding mechanical room environments while maintaining long-term stability. The sensor is ideal for pump differential pressure monitoring, filter status indication, and chiller plant optimization. Contractors can rely on its 1/4" NPT female process connections for simple integration into standard piping manifolds. By delivering real-time pressure data to a Building Automation System (BAS), the 22PDP-585A ensures optimal pump speed control and system energy efficiency through accurate differential pressure measurement.
- Selectable Output Signals: Field-adjustable 0-5/10 VDC or 4-20 mA for seamless DDC controller integration.
- Durable Construction: Stainless steel sensing elements provide corrosion resistance in closed-loop hydronic systems.
- High Overpressure Rating: Engineered to withstand system spikes without loss of calibration accuracy.
- Hydronic Versatility: Suitable for water, water-glycol mixtures, and non-aggressive media.
Common Questions
Is this sensor compatible with high-temperature hydronic loops?
Yes, the 22PDP-585A is designed for standard commercial HVAC fluid temperatures; however, ensure the media temperature does not exceed the maximum rated limit of 250°F (120°C).
What is the power requirement for the 22PDP-585A?
This device typically operates on 24 VAC/DC power, making it compatible with standard HVAC control transformers.
Can this be used for steam applications?
No, this sensor is intended for liquid or gas media. For steam, a pigtail syphon or similar thermal barrier must be used to protect the sensing element from extreme temperatures.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $887.69
-65%$887.69
$310.69Belimo 22PDP-585A Sensor
The Belimo 22PDP-585A is a high-accuracy differential pressure sensor designed for monitoring and controlling liquids and gases in HVAC hydronic systems. Operating on a proportional 0-10 VDC or 4-20 mA output signal, this sensor provides precise pressure monitoring across a 0-100 psi range. Built with a rugged NEMA 4 / IP65 rated enclosure and stainless steel wetted parts, it handles demanding mechanical room environments while maintaining long-term stability. The sensor is ideal for pump differential pressure monitoring, filter status indication, and chiller plant optimization. Contractors can rely on its 1/4" NPT female process connections for simple integration into standard piping manifolds. By delivering real-time pressure data to a Building Automation System (BAS), the 22PDP-585A ensures optimal pump speed control and system energy efficiency through accurate differential pressure measurement.
- Selectable Output Signals: Field-adjustable 0-5/10 VDC or 4-20 mA for seamless DDC controller integration.
- Durable Construction: Stainless steel sensing elements provide corrosion resistance in closed-loop hydronic systems.
- High Overpressure Rating: Engineered to withstand system spikes without loss of calibration accuracy.
- Hydronic Versatility: Suitable for water, water-glycol mixtures, and non-aggressive media.
Common Questions
Is this sensor compatible with high-temperature hydronic loops?
Yes, the 22PDP-585A is designed for standard commercial HVAC fluid temperatures; however, ensure the media temperature does not exceed the maximum rated limit of 250°F (120°C).
What is the power requirement for the 22PDP-585A?
This device typically operates on 24 VAC/DC power, making it compatible with standard HVAC control transformers.
Can this be used for steam applications?
No, this sensor is intended for liquid or gas media. For steam, a pigtail syphon or similar thermal barrier must be used to protect the sensing element from extreme temperatures.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
