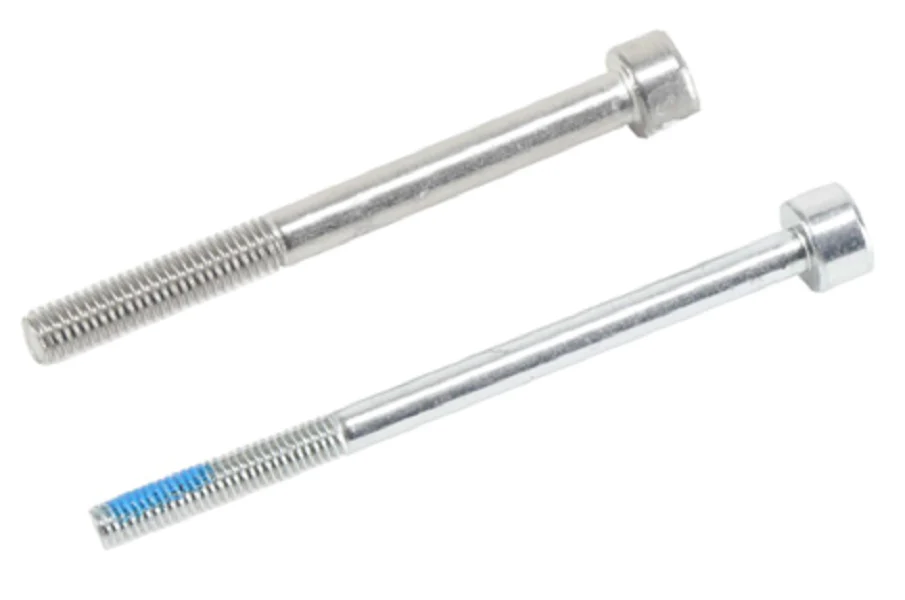

Belimo 13132-00001 Screw Kit
The Belimo 13132-00001 Screw Kit is a critical hardware package designed for securing NRA-SRA actuators and ARB/ARX actuators to Characterized Control Valves (CCV). Developed for high-precision HVACR mechanical assemblies, this kit ensures a stable, vibration-resistant connection between the actuator drive and the valve body. It features two industrial-grade, precision-engineered screws: an M4 x 63 mm and an M5 x 55 mm fastener. These specific lengths are required to clear the actuator housing and provide sufficient thread engagement into the mounting flange, preventing mechanical play that could lead to control inaccuracies or hysteresis in the sequence of operation. Whether you are performing a field replacement or a new install, using OEM Belimo mounting hardware is essential for maintaining the alignment of the CCV assembly. This kit is compatible with Belimo NR24A-SR series actuators and provides the necessary reach for non-spring return applications where standard shorter fasteners fail to meet torque requirements.
Key Benefits:- Includes one M4 x 63 mm and one M5 x 55 mm screw for full compatibility with NRC and SRC series configurations.
- Optimized for spring return and non-spring return actuator mounting to Belimo CCV valve bodies.
- Engineered to manage the high torque output of the ARX and ARB series without fastener fatigue.
- Provides the exact length required for NRA-SRA actuator field retrofits.
- Corrosion-resistant construction ensures long-term reliability in plenum and mechanical room environments.
- Will this kit work for mounting LRA actuators to CCVs? No, this specific kit is sized for NRA, SRA, ARB, and ARX series actuators; LRA actuators typically require a different screw kit (13131-00001).
- Does this include the bracket for the CCV? This is the hardware kit only; it includes the screws required to secure the actuator once the bracket is in place.
- Are these screws compatible with other valve brands? These are specifically engineered for use with Belimo Characterized Control Valves (CCV) and may not have the correct threading or head clearance for third-party valves.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $2.76
-65%$2.76
$0.97Belimo 13132-00001 Screw Kit
The Belimo 13132-00001 Screw Kit is a critical hardware package designed for securing NRA-SRA actuators and ARB/ARX actuators to Characterized Control Valves (CCV). Developed for high-precision HVACR mechanical assemblies, this kit ensures a stable, vibration-resistant connection between the actuator drive and the valve body. It features two industrial-grade, precision-engineered screws: an M4 x 63 mm and an M5 x 55 mm fastener. These specific lengths are required to clear the actuator housing and provide sufficient thread engagement into the mounting flange, preventing mechanical play that could lead to control inaccuracies or hysteresis in the sequence of operation. Whether you are performing a field replacement or a new install, using OEM Belimo mounting hardware is essential for maintaining the alignment of the CCV assembly. This kit is compatible with Belimo NR24A-SR series actuators and provides the necessary reach for non-spring return applications where standard shorter fasteners fail to meet torque requirements.
Key Benefits:- Includes one M4 x 63 mm and one M5 x 55 mm screw for full compatibility with NRC and SRC series configurations.
- Optimized for spring return and non-spring return actuator mounting to Belimo CCV valve bodies.
- Engineered to manage the high torque output of the ARX and ARB series without fastener fatigue.
- Provides the exact length required for NRA-SRA actuator field retrofits.
- Corrosion-resistant construction ensures long-term reliability in plenum and mechanical room environments.
- Will this kit work for mounting LRA actuators to CCVs? No, this specific kit is sized for NRA, SRA, ARB, and ARX series actuators; LRA actuators typically require a different screw kit (13131-00001).
- Does this include the bracket for the CCV? This is the hardware kit only; it includes the screws required to secure the actuator once the bracket is in place.
- Are these screws compatible with other valve brands? These are specifically engineered for use with Belimo Characterized Control Valves (CCV) and may not have the correct threading or head clearance for third-party valves.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
