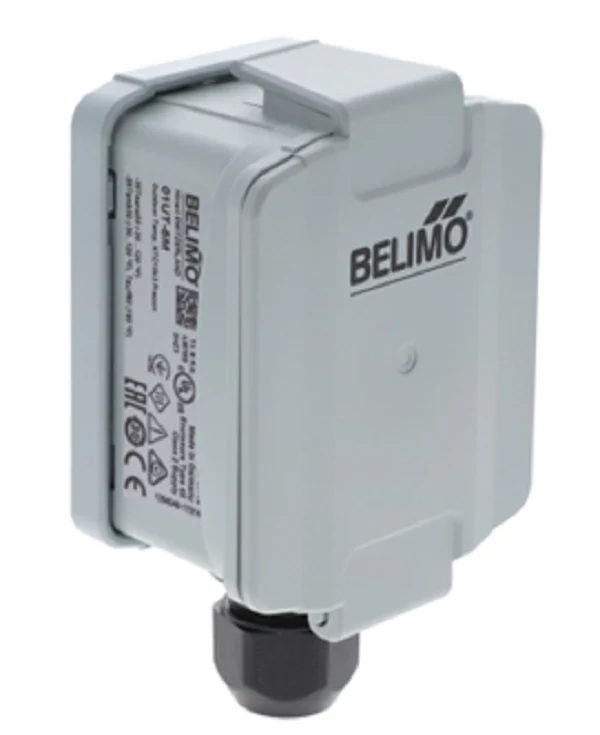

Belimo 01UT-5M Sensor
The Belimo 01UT-5M is a professional-grade outdoor temperature sensor engineered for precise atmospheric monitoring in demanding HVACR applications. Built with a passive NTC10k3 (Precon) thermistor, this sensor provides high-accuracy resistance signaling optimized for seamless integration with major building automation systems (BAS). The internal sensor is protected by a rugged, UV-resistant NEMA 4X / IP65 rated enclosure, making it a reliable choice for cold stores, greenhouses, and industrial production plants where exposure to the elements is constant.
Contractors will appreciate the streamlined installation process facilitated by the pluggable spring-loaded terminal block, which accepts wiring up to 11 AWG (2.5 mm²). This outside air temperature sensor features a wide measuring range from -30°F to 120°F and includes a 1/2" NPT conduit adapter for standard electrical fittings. With its compact Lexan housing and dedicated mounting plate, the 01UT-5M ensures a secure, professional finish while maintaining an accuracy of ±0.35°F at 77°F, reducing call-backs and optimizing system efficiency.
Key Benefits- Precise Signal Accuracy: Utilizes a high-precision NTC10k3 thermistor for reliable temperature data with minimal drift.
- Engineered for Durability: The NEMA 4X / IP65 enclosure provides superior protection against dust, rain, and hose-directed water.
- Simplified Field Wiring: Features a removable spring-loaded terminal block and a universal 1/2" NPT conduit adapter for rapid deployment.
- Versatile Compatibility: Designed for standard 10k Type 3 controller inputs, ensuring broad support across diverse HVAC platforms.
- What is the difference between 10k2 and 10k3 sensors? The 01UT-5M uses the 10k3 (Precon) curve; always verify your controller's input requirements to ensure the resistance-to-temperature conversion is accurate.
- How do I prevent measurement errors over long wire runs? Since this is a 2-wire passive sensor, calculate line resistance for long distances to account for potential offsets in the BAS reading.
- Can this sensor be mounted in direct sunlight? While the housing is UV-resistant, best practice is to mount the sensor on a northern-facing wall or use a solar shield to prevent solar gain from skewing readings.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
