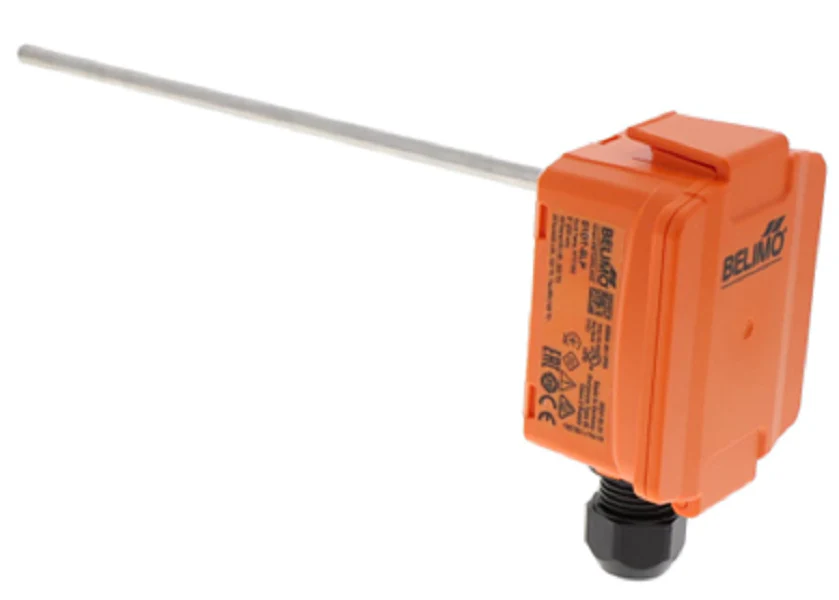

Belimo 01DT-5LP Temp Sensor
The Belimo 01DT-5LP is a professional-grade NTC10k duct temperature sensor designed for precise environmental monitoring in commercial HVAC systems. Featuring an 8-inch stainless steel probe with a 0.24-inch diameter, this passive temperature sensor provides reliable 10k Type II thermistor resistance output without the need for external power. It is ideal for duct mounting or immersion applications when paired with a compatible thermowell, ensuring accurate readings across a wide measuring range of -60°F to 300°F.
Built for the rigors of the mechanical room, the Belimo 01DT-5LP includes a rugged NEMA 4X / IP65 enclosure with a hinged Lexan cover for superior protection against moisture and debris. The unit comes standard with a 1/2-inch NPT conduit adapter, mounting clip, and screws, facilitating a streamlined installation process for any HVAC automation or building management system (BMS). Its high-accuracy sensing element (${\pm}$0.35°F at 77°F) makes it a staple for contractors looking to optimize air handling unit discharge temperatures or hydronic supply lines.
Key Benefits
- High-Accuracy Sensing: High-performance NTC10k (10k2) element ensures reliable data points for precise PID control loops.
- Durable Construction: Stainless steel probe and NEMA 4X rated housing protect the internal thermistor from corrosive environments.
- Versatile Application: Suitable for both air duct sensing and immersion temperature monitoring in liquid lines with the correct well.
- Quick Installation: Features pluggable spring-loaded terminals and a comprehensive mounting hardware kit.
Common Questions
Is the Belimo 01DT-5LP compatible with standard 10k Type 2 controllers?
Yes, its NTC10k passive output is compatible with the majority of industry-standard BAS and HVAC controllers that accept 10k Type II resistance inputs.
Can this sensor be used in plenums?
Yes, this sensor is UL 2043 compliant, making it safe for installation in air plenums and other environmental air spaces.
What is the maximum temperature this probe can withstand?
The 8-inch duct sensor is designed to operate accurately in temperatures ranging from -60°F up to 300°F (-50°C to 150°C).
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
