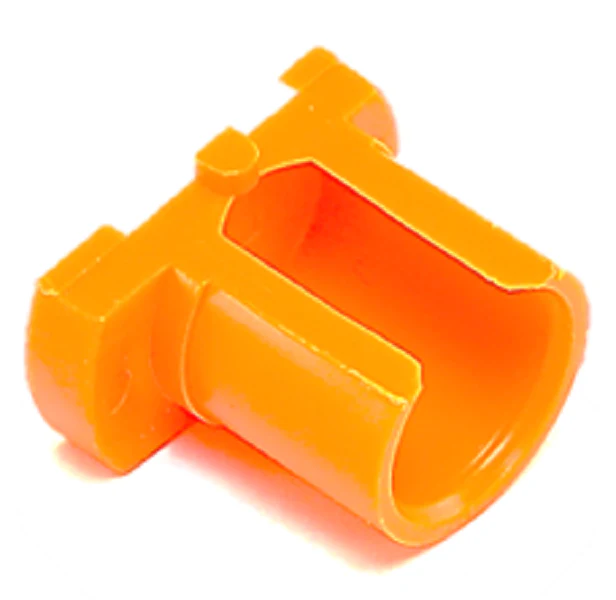

Beckett Igniter Z2000U Gauge Kit
The Beckett Igniter Z2000U Gauge Kit is an essential field tool for technicians performing precision oil burner maintenance and setup. Engineered specifically for Beckett AF, AFG, SR, and SF burners utilizing "F" style retention heads, it is also fully compatible with AFII burners featuring "FB" style heads. This nozzle assembly setting gauge allows for the exact calibration of the "Z" dimension—the critical distance between the nozzle and the retention head—without requiring the removal of the burner from the appliance. By ensuring the oil burner electrodes are set to factory specifications (5/16-inch above center, 1/16-inch in front, and a 5/32nd-inch gap), this tool eliminates common ignition failures and inefficient combustion. Utilizing the Z2000U burner tool ensures consistent HVAC professional ignition setup, reducing soot accumulation and preventing localized overheating of the combustion head. Its composite construction is designed for durability against oil and heat while maintaining the fine tolerances required for high-performance residential and commercial oil heating systems.
Key Benefits- Precise Z-Dimension Calibration: Facilitates terminal nozzle positioning relative to the combustion head to ensure optimal flame patterns.
- Enhanced Electrode Alignment: Features integrated marks for oil burner electrode adjustment to prevent delayed ignition and "puffs."
- Non-Intrusive Adjustment: Allows technicians to verify settings through the air tube, significantly reducing labor time during annual clean-outs.
- Broad Beckett Compatibility: A single tool covers the majority of Beckett’s flagship residential burner lines, including the AFG series.
- Optimized Combustion Efficiency: Proper gapping and spacing help eliminate black smoke and maximize fuel economy for the end-user.
Which Beckett burner models is this gauge compatible with?
The Z2000U is designed for Beckett AF, AFG, SR, and SF oil burners with "F" heads and AFII burners with "FB" heads. It is not intended for use with Riello or certain L1/L2 adjustable head configurations that require the T501 multipurpose gauge.
Why is the Z-dimension critical for burner performance?
If the nozzle is too far forward or back, the spray pattern will not interface correctly with the air-shaping retention head, leading to impingement, carbon buildup, and unstable ignition.
Can this tool be used for electrode gapping?
Yes, the Z2000U gauge includes specific protrusions and reference marks to set the 5/32nd-inch gap and specific elevation heights required for reliable spark crossover.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
