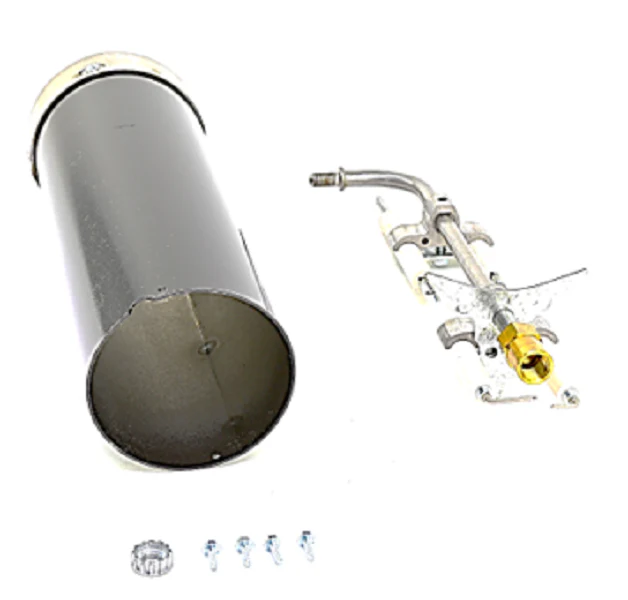

Beckett Igniter SF104FT Air Tube
The Beckett Igniter SF104FT Air Tube is an essential OEM replacement component designed for high-capacity SF series oil burners. Featuring a 10 1/2-inch usable length, this air tube combination is engineered to support a broad firing range of 2.5 to 5.5 GPH, ensuring precise combustion air delivery for industrial and heavy residential heating applications. As a genuine Beckett burner part, the SF104FT maintains the critical concentricity between the nozzle and the head, which is vital for a stable flame pattern and optimal fuel efficiency.
For technicians performing a burners retrofit or maintenance, this air tube combination provides the structural integrity needed to withstand high-static pressure environments. It is built to the exact tolerances of the Beckett SF model, facilitating a seamless fit with existing mounting flanges and electrode assemblies. Utilizing this 10.5-inch burner tube ensures that your heating system meets original manufacturer specifications for emissions and thermal performance without the risk of improper airflow or soot buildup associated with non-standard parts.
Key Benefits
- High-Flow Performance: Optimized for firing rates between 2.5 and 5.5 GPH, accommodating large-scale heating requirements.
- Precision Engineering: The 10 1/2-inch length is factory-calibrated for the Beckett SF chassis, ensuring proper head positioning.
- Durable Construction: Heavy-duty steel housing resists warping and heat-related stress during long run cycles.
- Enhanced Combustion: Improved air-oil mixing reduces smoke and increases overall system efficiency.
- OEM Compatibility: Direct replacement for SF104FT, maintaining the UL listing and safety integrity of the burner.
Common Questions
How do I measure the length of a Beckett air tube?
Beckett measures air tubes by "usable length," which is the distance from the front of the burner housing to the tip of the tube. The overall length is typically 1/2 inch longer than the stated 10 1/2-inch dimension.
Does this air tube include the combustion head?
The SF104FT is generally sold as an air tube combination. Technicians should verify if their specific application requires an "F" series or "R" series head, as these are sometimes specified separately depending on the OEM appliance requirements.
Is this compatible with AF or AFG burners?
No, the SF series air tubes are specifically designed for the larger SF burner chassis. For AF or AFG models, you must use the AF104 or equivalent series to ensure proper mounting and electrode clearance.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
