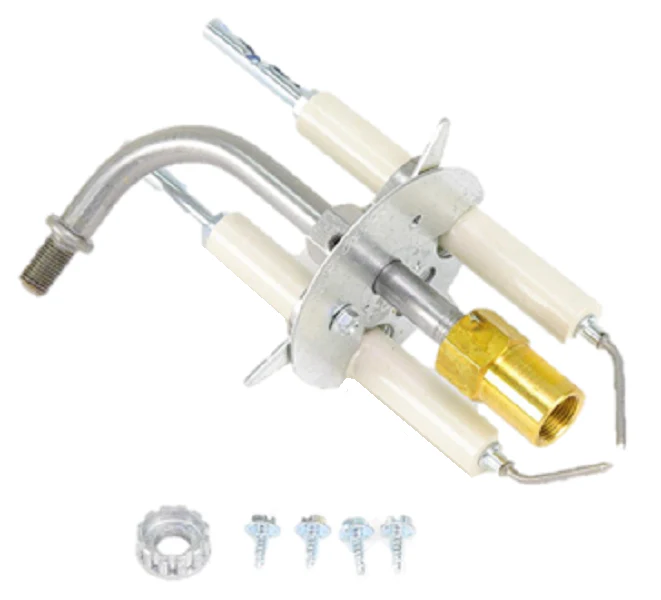

Beckett Igniter NL50YB Electrode Assembly
The Beckett NL50YB Igniter Electrode Assembly is a precision-engineered replacement component specifically designed to maintain the spark gap and ignition integrity of Beckett oil burners. As a critical part of the combustion head, this nozzle line electrode assembly comes pre-assembled with the nozzle line, adapter, and insulators to ensure the Beckett NL50YB provides consistent 12kV-14kV spark delivery for reliable start-ups. Designed to meet exact OEM tolerances, this assembly is compatible with Beckett AF, AFG, SR, and SF series burners, facilitating a high-performance fuel oil burner ignition by positioning the electrode tips at the optimal 5/16" or 7/16" height above the nozzle centerline for maximum spark efficiency.
For veteran technicians, the Beckett 5780 electrode kit equivalent in the NL50YB configuration is essential for resolving lockout issues caused by cracked ceramics or carbon tracking. This HVAC replacement part streamlines the maintenance process by eliminating the need for complex field adjustments of individual electrodes, ensuring the nozzle and head remain perfectly concentric within the air tube. Replacing the entire Beckett burner electrode assembly ensures the high-voltage arc effectively ignites the fuel spray, even in cold-start environments with high-viscosity oil, maintaining the thermal efficiency of the residential or light commercial heating system.
Key Benefits for Technicians- Ensures consistent Beckett oil burner ignition by maintaining precise electrode-to-nozzle spacing.
- Reduces time on site with a pre-configured nozzle line electrode assembly that fits standard Beckett air tubes.
- Minimizes the risk of electrode shorting with high-grade ceramic insulators and durable rod extensions.
- Compatible with a wide range of Beckett heating systems including AF and AFG models.
- Promotes clean combustion and prevents burner "puff-backs" by securing a stable ignition arc.
How do I verify if the Beckett NL50YB is compatible with my burner?
This assembly is designed for Beckett AF, AFG, SR, and SF series burners. You should verify the air tube length and internal nozzle line diameter; this unit is typically used in standard F-head configurations where OEM specifications call for a dedicated nozzle line assembly.
What is the correct electrode tip setting for this assembly?
Standard Beckett settings require the tips to be 1/16" apart and 5/16" above the nozzle center for most modern applications, though some older OEM specifications may require a 7/16" height. Using a Beckett T-Gauge is recommended for final verification after installation.
Why should I replace the entire nozzle line assembly instead of just the rods?
Carbon buildup on the nozzle adapter or micro-cracks in the ceramic insulators can cause intermittent ignition failure. Replacing the complete Beckett NL50YB assembly ensures all electrical and mechanical connections are factory-spec, reducing the likelihood of repeat service calls.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
