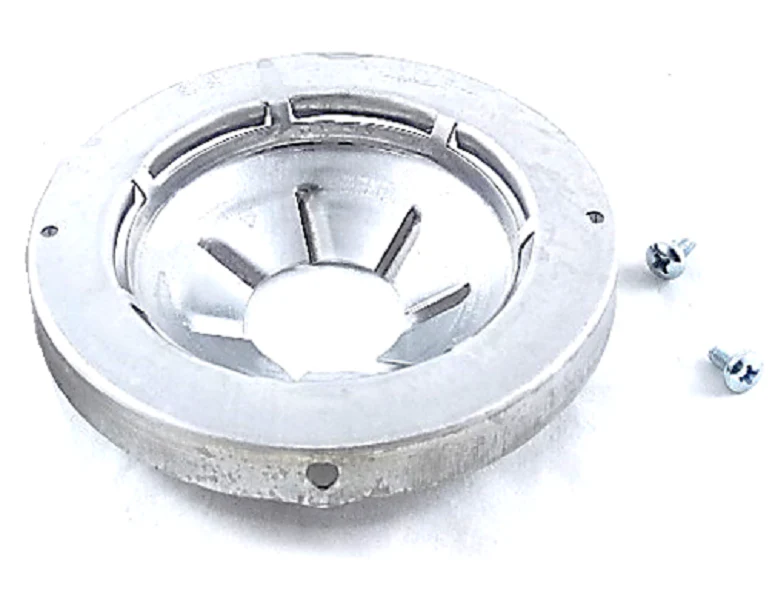

Beckett Igniter F3 Head/Heat Shield
For service technicians maintaining Beckett AF and AFG burners, the Beckett Igniter F3 Head/Heat Shield (Part 10565011) is an essential component for achieving optimal flame retention and thermal protection. Specifically designed for applications with a firing rate of 0.75 to 1.25 GPH, this high-performance F3 head creates the precise air-fuel swirl necessary for clean, efficient combustion. The integrated heat shield serves as a critical barrier, protecting the internal igniter components from the extreme temperatures of the combustion chamber, which prevents premature fouling and ensures consistent burner ignition cycles. When performing a nozzle line assembly replacement or annual maintenance, verifying the "Z" dimension—typically 1-1/8” for F-series heads—is mandatory to prevent flame impingement and potential soot accumulation. This genuine Beckett replacement burner part ensures HVAC compatibility and maintains the original equipment’s UL listing, providing a reliable solution for residential and light commercial oil heating systems.
Key Benefits:- Optimized Combustion: Engineered for the 0.75-1.25 GPH range to maximize fuel efficiency in AF and AFG chassis.
- Thermal Protection: The heavy-duty heat shield significantly reduces thermal stress on electrodes and igniter components.
- Perfect Alignment: Ensures proper F3 head positioning to maintain the critical air pattern for a stable flame.
- OEM Standards: Genuine Beckett construction guarantees precise fitment, reducing the risk of oil burner troubleshooting issues during start-up.
- Is this compatible with all Beckett AF burners? It is specifically designed for AF and AFG models using the F3 head configuration within the specified GPH range. Always check your air tube combination before installing.
- What is the correct Z-dimension for this head? For most F-head applications, the standard Z-dimension is 1-1/8 inches from the nozzle face to the head face.
- Does this include the ceramic insulator? This assembly includes the metallic heat shield and flame head; verify your specific burner requirements for additional ceramic insulators.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
