Beckett Igniter AFG50MBAS Air Tube

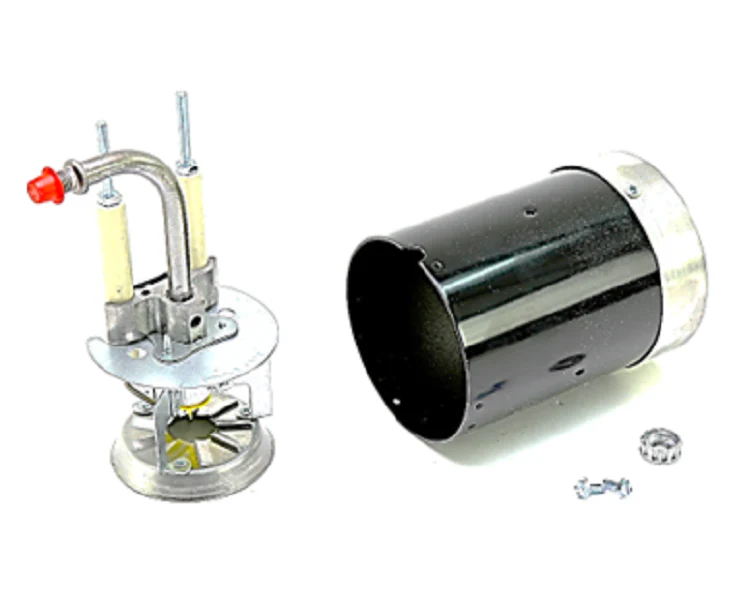

The Beckett AFG50MBAS Air Tube Combination is a precision-engineered 5-inch blast tube designed specifically for Beckett AFG burners requiring a M-Head configuration. This heavy-duty air tube assembly ensures proper flame retention and optimal static pressure within the combustion chamber, critical for maintaining high efficiency in residential and light commercial oil heating systems. Engineered for a 1-3/4 inch electrode setback, the Beckett 50MBAS facilitates consistent ignition and stable oil burner performance. Integrating this component allows technicians to restore factory-spec airflow patterns, reducing combustion deposits and ensuring reliable service life. Constructed from high-grade steel to withstand high-ambient temperatures, the AFG air tube combination is a standard-drop replacement for damaged or warped tubes, ensuring seamless compatibility with Beckett burner chassis mounts. By maintaining the correct air-to-fuel ratio, this component is essential for technicians performing routine maintenance or emergency burner overhauls.
- Specific M-Head Compatibility: Designed for precise fitment with AFG series burners utilizing M-style heads for superior combustion stability.
- Optimized Airflow Dynamics: The 5-inch length and internal diameter are calibrated to maximize static pressure and blower wheel efficiency.
- Durable Construction: Heavy-gauge steel housing resists thermal stress and prevents warping during high-cycle operation.
- Direct Replacement: Simplifies field installation by matching OEM mounting specifications for Beckett AFG burner housings.
Common Questions
What is the exact insertion length of the AFG50MBAS?
This air tube is classified as a 5-inch tube, though the actual "A" dimension measurement is critical for ensuring the nozzle is positioned correctly within the combustion chamber for your specific boiler or furnace heat exchanger.
How do I confirm if my burner requires an M-Head air tube?
Check the existing burner's data plate or visual head configuration. The Beckett AFG50MBAS is specifically designed for the M-style retention head; using it with an F-head or L-head assembly will result in poor combustion and potential equipment damage.
Does this air tube include the electrode assembly?
This part number typically refers to the air tube combination which includes the tube and the specific head/sleeve assembly required for the AFG series burners of this length.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
