Beckett Igniter 7622TW03 Well

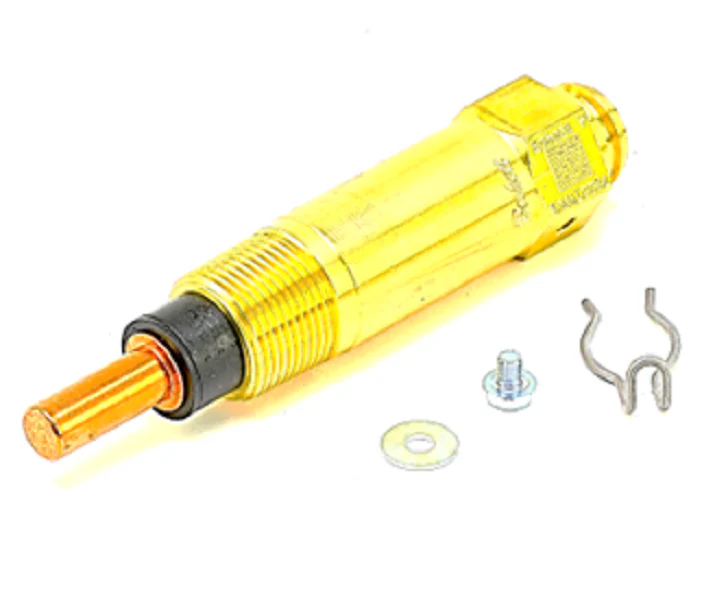

The Beckett 7622TW03 is a professional-grade 3/4 inch NPT brass immersion well engineered specifically for high-performance integration with Beckett AquaSmart controls. This thermowell serves as a direct, heavy-duty replacement for older polymer models like the 7600TW, offering superior structural integrity in high-pressure oil burner applications. Constructed from a robust brass and copper alloy, the Beckett 7622TW03 is rated for operating environments up to 250 PSI and 250°F. Its unique design provides the essential electrical isolation required for low water cut-off (LWCO) functionality while maintaining accurate thermal conductivity for standard temperature sensing. With a 3-1/2 inch insulation depth and a 1-5/8 inch insertion depth, this component ensures the sensing bulb is positioned correctly within the flow path for precise aquastat control. For contractors performing HVAC maintenance, this well facilitates sensor replacement without the need to drain the system, provided the existing removable sensor is compatible with the 7600 or 7610 series modules.
Key Benefits- LWCO Compatibility: Specifically designed to support low water cut-off sensors by providing the necessary electrical isolation through its specialized brass and copper architecture.
- Superior Pressure Rating: Built to withstand demanding boiler environments with a 250 PSI and 250°F maximum rating, ensuring long-term reliability over standard polymer alternatives.
- Universal 3/4" NPT Threading: Features a standard 3/4 inch NPT brass connection for seamless integration into most hydronic heating manifolds and boiler tapping points.
- Optimized Insertion Depth: The 1-5/8 inch insertion depth and 3-1/2 inch insulation depth are calibrated to minimize thermal lag and provide real-time temperature data to the Beckett AquaSmart 7610 control.
- Serviceability: Allows for the extraction of temperature sensors for testing or replacement without depressurizing or draining the hydronic system.
Is the Beckett 7622TW03 compatible with non-Beckett sensors?
While the 3/4 inch NPT fitting is standard, this well is optimized for the internal diameters and electrical requirements of Beckett 7600TS and 7600P sensors used with AquaSmart boiler controls.
Should I use Teflon tape on the threads?
When utilizing this well for low water cut-off (LWCO) applications, do not use Teflon tape. The tape can act as an insulator and interfere with the continuity required for the LWCO circuit to function safely. Use a conductive pipe sealant instead.
What is the difference between this and the 7600TW model?
The 7622TW03 is a high-durability brass and copper upgrade from the 7600TW polymer well, offering higher heat resistance and better protection for the sensing element.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $40.73
-65%$40.73
$14.26Beckett Igniter 7622TW03 Well
