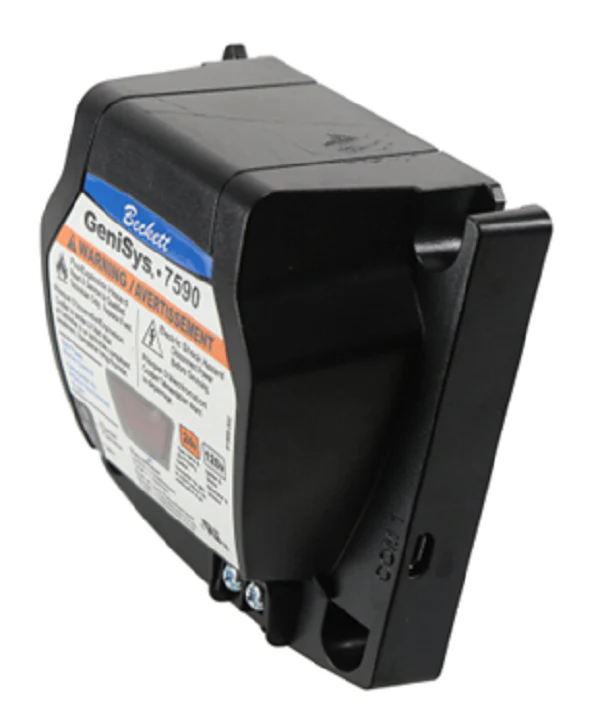

Beckett Igniter 7590C0001U Control
The Beckett 7590C0001U Gas Burner Control is a dedicated dual-voltage solution for high-efficiency commercial and residential heating platforms. Operating on a 120/24V power supply, this integrated ignition module manages the hot surface igniter (HSI), inducer motor, and gas valve sequences with high-precision timing. Designed for seamless replacement in Beckett equipment, it features a pre-purge and post-purge cycle to ensure safe combustion chamber venting and reliable ignition under varied manifold pressures. The integrated flame sensing circuitry provides sub-second response times for flame failure detection, reducing unnecessary lockouts while maintaining strict safety parameters. Its diagnostic LED indicators expedite troubleshooting on the job site by identifying specific system faults, such as pressure switch failures or roll-out trips. This control board is engineered for industrial-grade durability, ensuring stable performance in high-ambient environments and compatibility with various NEMA-rated enclosures common in modern gas-fired mechanical rooms.
Product Specifications and Performance Benefits- Multi-Voltage Compatibility: Supports 120V inducer motors and 24V control circuits for versatile system integration.
- Advanced HSI Logic: Optimizes igniter warm-up time to extend the service life of silicon carbide or nitride components.
- Diagnostic Feedback: On-board flash codes simplify HVAC troubleshooting and reduce site time for contractors.
- Direct OEM Replacement: Ensures exact mechanical fit and wiring harness compatibility for Beckett gas burner platforms.
- Robust Safety Logic: Includes non-volatile lockout memory to preserve fault history during power interruptions.
Is the 7590C0001U compatible with intermittent pilot systems?
No, this controller is specifically engineered for Hot Surface Ignition (HSI) gas burners. Verify your ignition type before installation.
How do I interpret the diagnostic LED flash codes?
The blink patterns correspond to specific faults such as limit switch open, flame sensed out of sequence, or ignition failure, allowing for rapid component isolation.
Does this module support dual-stage gas valves?
The Beckett 7590C0001U is designed for single-stage heating applications standard in most Beckett conversion and residential burner packages.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
