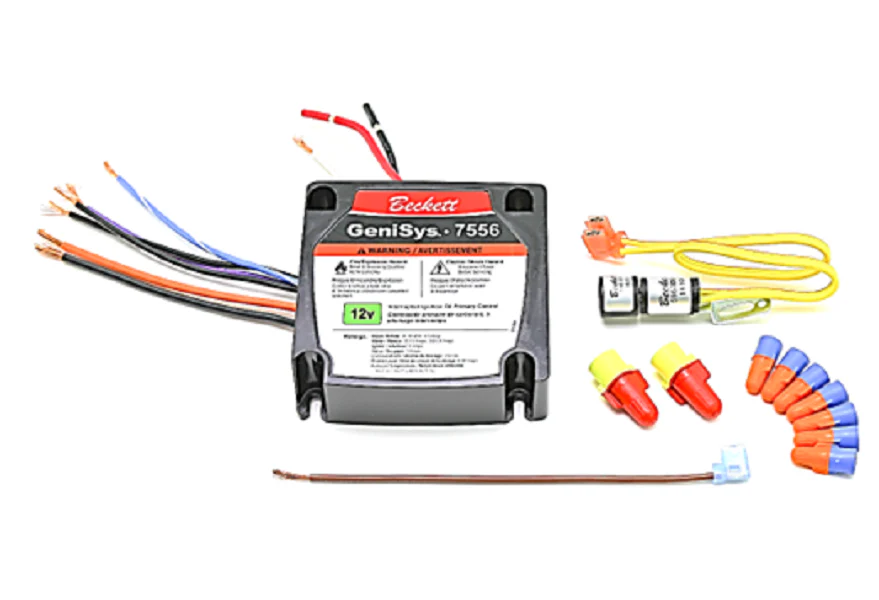

Beckett Igniter 7556P158MU Control
The Beckett 7556P158P GeniSys 12V DC Oil Burner Primary Control is a heavy-duty, microprocessor-based safety control designed for mobile applications, pressure washers, and agricultural heating equipment where 12VDC power is the standard. This potted oil burner controller is engineered for high-vibration environments and moisture resistance, ensuring reliable ignition and flame monitoring in demanding field conditions. The 7556P158MU replaces older 12-volt Beckett controls, providing precise timing for pre-purge and post-purge cycles to clear the heat exchanger of combustion gases and prevent nozzle aftermarket cooling issues. It features a cad cell flame sensor interface to monitor combustion and lockout the burner if a flame is not established or is lost during the run cycle. This direct replacement 12VDC igniter control integrates seamlessly with existing Beckett burner chassis, maintaining system safety integrity while improving diagnostic capabilities through its LED status indicator, which assists technicians in identifying lockout causes rapidly.
Key Technical Benefits- Potted Electronics: High-resistance encapsulation protects internal circuitry from moisture, dust, and heavy vibration common in mobile pressure wash trailers.
- Enhanced Safety Logic: Features limited reset and limited solar cycles to prevent redundant ignition attempts that could lead to fuel pooling.
- Precise Timing: Factory-set timings for valve-on delay and motor-off delay optimize combustion efficiency and reduce soot buildup.
- 12V DC Compatibility: Specifically designed for battery-operated or alternator-fed systems, ensuring stable performance despite voltage fluctuations.
- Diagnostic LED: Provides immediate visual feedback for flame signal strength, lockout modes, and power status to minimize downtime.
Can the 7556P158MU be used on 120V AC systems?
No, this control is strictly for 12V DC oil burners. Installing this on an AC circuit will result in immediate failure of the control module.
How do I test the cad cell signal with this control?
The LED will flash specific codes indicating the cad cell resistance. High resistance during the run cycle typically indicates a dirty cell, misaligned electrodes, or poor combustion.
Does this unit support a remote alarm or lockout light?
Yes, the 7556 series includes terminals for remote notification, allowing operators to monitor burner status from a control panel away from the burner unit.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
