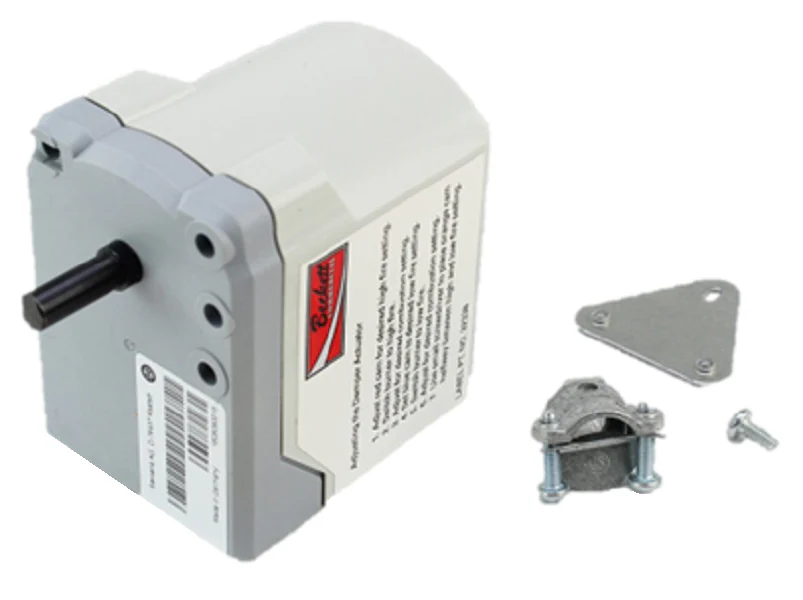

Beckett Igniter 750601U Damper Actuator
The Beckett 750601U 120V Damper Actuator is a critical OEM component for commercial two-stage oil burners, specifically engineered for Beckett CF1400 through CF3500 models. This actuator replaces traditional mechanical linkages with reliable electronic operation, facilitating a precise transition between low and high fire. By eliminating mechanical linkages, technicians can achieve more stable combustion air settings and reduce the drift often associated with manual rod-and-arm assemblies. The unit features an illuminated high-fire switch for immediate visual confirmation of the actuator's position during tuning. Built to rigorous Beckett HALT (Highly Accelerated Life Testing) standards, this 120V air damper actuator ensures consistent performance in high-cycle commercial heating applications. Installation is streamlined for field professionals, requiring only basic tools for mounting and adjustment, which simplifies burner setup and long-term maintenance protocols.
Technical Benefits for Contractors- Direct Drive Operation: Eliminates inconsistent mechanical linkage for precise combustion air control.
- Broad Compatibility: Designed specifically as an OEM replacement for Beckett CF series burners (CF1400-CF3500).
- Visual Diagnostics: Integrated illuminated switch confirms high fire positioning at a glance.
- Simplified Commissioning: Field-adjustable settings allow for rapid optimization of two-stage oil burner efficiency.
- Industrial Build Quality: Tested to withstand the thermal and vibration stresses of commercial boiler rooms.
Does this actuator require specialized software for configuration?
No, the Beckett 750601U is designed for manual technical adjustment using standard tools, allowing for easy high-fire and low-fire set points during a combustion analysis.
Can this be used on older Beckett CF series burners?
This 120V damper actuator is the standard electronic replacement for CF1400, CF2300, and CF3500 models originally equipped with or being retrofitted for electronic air control.
What are the benefits of electronic actuators over mechanical linkages?
Electronic actuators provide repeatable air damper positioning, which prevents the combustion issues caused by loose or worn linkage joints over time.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $420.88
-65%$420.88
$147.31Beckett Igniter 750601U Damper Actuator
The Beckett 750601U 120V Damper Actuator is a critical OEM component for commercial two-stage oil burners, specifically engineered for Beckett CF1400 through CF3500 models. This actuator replaces traditional mechanical linkages with reliable electronic operation, facilitating a precise transition between low and high fire. By eliminating mechanical linkages, technicians can achieve more stable combustion air settings and reduce the drift often associated with manual rod-and-arm assemblies. The unit features an illuminated high-fire switch for immediate visual confirmation of the actuator's position during tuning. Built to rigorous Beckett HALT (Highly Accelerated Life Testing) standards, this 120V air damper actuator ensures consistent performance in high-cycle commercial heating applications. Installation is streamlined for field professionals, requiring only basic tools for mounting and adjustment, which simplifies burner setup and long-term maintenance protocols.
Technical Benefits for Contractors- Direct Drive Operation: Eliminates inconsistent mechanical linkage for precise combustion air control.
- Broad Compatibility: Designed specifically as an OEM replacement for Beckett CF series burners (CF1400-CF3500).
- Visual Diagnostics: Integrated illuminated switch confirms high fire positioning at a glance.
- Simplified Commissioning: Field-adjustable settings allow for rapid optimization of two-stage oil burner efficiency.
- Industrial Build Quality: Tested to withstand the thermal and vibration stresses of commercial boiler rooms.
Does this actuator require specialized software for configuration?
No, the Beckett 750601U is designed for manual technical adjustment using standard tools, allowing for easy high-fire and low-fire set points during a combustion analysis.
Can this be used on older Beckett CF series burners?
This 120V damper actuator is the standard electronic replacement for CF1400, CF2300, and CF3500 models originally equipped with or being retrofitted for electronic air control.
What are the benefits of electronic actuators over mechanical linkages?
Electronic actuators provide repeatable air damper positioning, which prevents the combustion issues caused by loose or worn linkage joints over time.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
