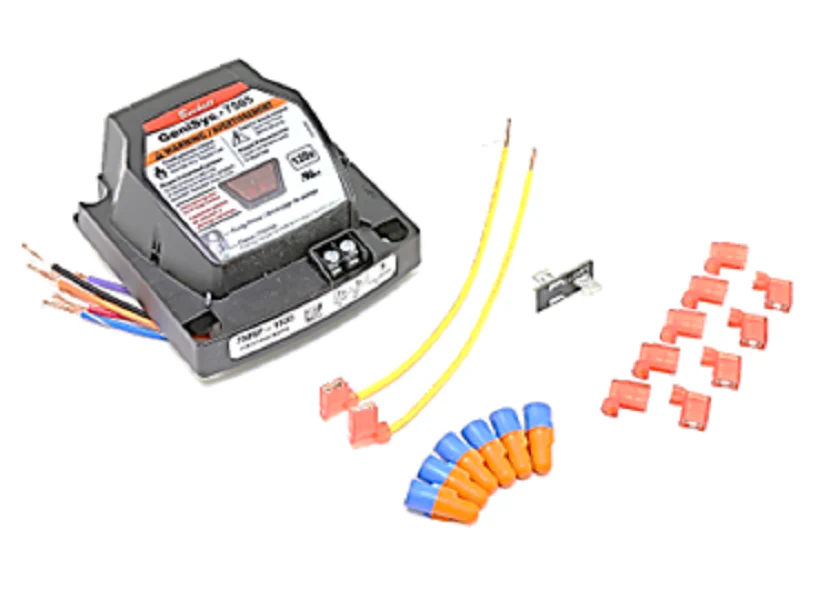

Beckett Igniter 7505P1530U Control
For contractors demanding unwavering performance and precise control in oil-fired heating systems, the Beckett 7505P1530U Control is your go-to 120V oil primary control. This advanced Beckett GeniSys 7505 oil burner control is engineered for seamless integration into residential and light commercial boiler, furnace, and water heater applications. It provides reliable ignition and comprehensive system management, ensuring optimal operational efficiency. Featuring robust solid-state technology, this control is built for durability and consistent performance in demanding HVACR environments. It’s designed to work with a suitable cad cell flame sensor, managing the burner motor, igniter, and optional solenoid valve. With a 15-second lockout time and interrupted ignition, it maintains safety protocols while delivering consistent heat. This unit is a direct replacement for older R7184P relay controls, offering an upgrade in diagnostic capabilities and overall system reliability.
- Enhanced Diagnostics: Three status lights and storage of the last 15 cycles simplify troubleshooting and system monitoring.
- Broad Compatibility: Designed for 120 VAC systems, compatible with 24 VAC mechanical and power-stealing thermostats.
- Reliable Operation: Features welded relay protection with redundant motor relays for extended operational life.
- Flexible Programming: Customizable pre-time and post-time settings, along with a Technician Pump Prime mode, allow for precise system tuning.
- Durable Construction: Water-resistant design ensures resilience in various operating conditions.
Common Questions
Q: What are the typical lockout issues with the Beckett 7505P1530U?
A: Common lockout causes include issues with the cad cell flame sensor (dirty, misaligned, or defective), air in the fuel pump, incorrect burner setup, or electrode alignment problems. Always verify proper flame adjustment and fuel supply.
Q: Is this control compatible with older Beckett burner models?
A: Yes, the 7505P1530U is compatible with various Beckett AF, AFG, and NX burners and serves as a direct replacement for R7184P relay controls, offering an updated solution for many existing systems.
Q: How do I program pre-purge and post-purge timings?
A: Pre-purge and post-purge timings can be programmed using specialized contractor tools like the GeniSys 52082 Contractor Tool or the BeckettLink Pro 7652, allowing for fine-tuning of burner cycles.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
