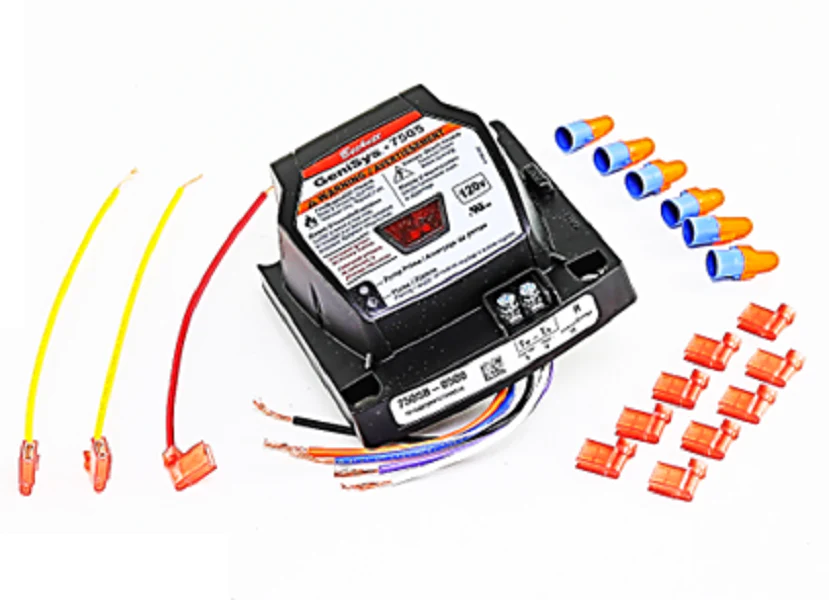

Beckett Igniter 7505B0500U Control
For the seasoned contractor, the Beckett Igniter 7505B0500U Control is a robust 120V primary safety control engineered for dependable operation in residential and light commercial oil burner applications. This unit is purpose-built for seamless integration into boiler, furnace, and water heater systems, ensuring precise management of the oil burner motor, igniter, and any optional solenoid valve. Operating within a voltage range of 102 to 132 VAC, this control features interrupted ignition and a critical 15-second lockout time, enhancing system safety and performance. Its 24 VAC thermostat inputs are compatible with both mechanical and power-stealing thermostats, offering broad system flexibility. With a maximum oil burner input of less than 20 GPH, this control is designed for efficiency and longevity in demanding HVACR environments. Technicians will appreciate the three integrated status lights for quick diagnostics and the Technician Pump Prime mode for streamlined servicing.
- Key Benefits:
- Reliable 120V primary safety control for oil burners.
- Broad compatibility with residential and light commercial boiler, furnace, and water heater setups.
- Interrupted ignition with a 15-second lockout for enhanced safety.
- Flexible 24 VAC thermostat input for diverse system integration.
- Integrated diagnostic status lights and Technician Pump Prime mode for efficient troubleshooting and maintenance.
- Engineered for oil burner inputs up to 20 GPH.
Common Questions:
- What are the common failure points for a Beckett 7505B0500U control? Typical issues often involve internal component degradation, leading to intermittent operation or complete lockout. Always verify proper cad cell function and wiring integrity before condemning the control.
- Is this control compatible with older Honeywell primary controls? The Beckett GeniSys 7505 series, which includes this model, is designed to replace older Honeywell R8184G and R7184B primary controls, offering a modern upgrade path.
- How do I troubleshoot a lockout on this control? Utilize the three status lights for initial diagnostics. A consistent lockout after 15 seconds often points to a flame sensing issue or a fault within the ignition circuit. Check electrode settings, high tension wires, and the cad cell detector.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
