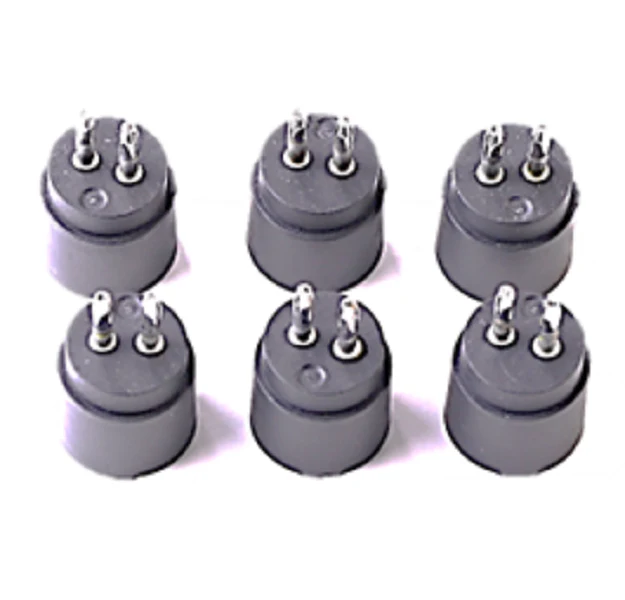

Beckett Igniter 596101BU Cad Cell Eyes
The Beckett Igniter 596101BU Cad Cell Eyes are essential components for ensuring precise flame detection in residential and commercial oil burners. This bulk pack of 6 cad cell eyes is engineered for high-sensitivity performance, utilizing cadmium sulfide technology to monitor the combustion process and signal the primary control to shut down if a flame failure occurs. These replacement flame sensors are high-value additions to any service kit, offering broad compatibility with Beckett, Carlin, and Wayne oil burners. Designed for direct fitment in GeniSys cad cell flame detectors, these sensors operate within a resistance range of 300-1000 ohms under normal conditions and require replacement if resistance exceeds 1600 ohms. These units feature a hermetic glass-to-metal seal to prevent interference from humidity, soot, or oil fumes, ensuring long-term HVAC system safety and efficiency. Note that this pack includes the 596101 eyes only; leads and holders must be sourced separately if required for a complete assembly overhaul.
Key Benefits- Universal Compatibility: Direct replacement for most standard cad cell technology used in Beckett, Carlin, and Wayne burners, as well as several Honeywell C554A models.
- Enhanced Sensitivity: Engineered with cadmium sulfide for reliable flame detection, maintaining system safety by preventing fuel accumulation during ignition failure.
- Service Ready: The convenient 6-pack allows technicians to maintain stock for multiple tune-ups and emergency service calls.
- Durable Construction: Features high-temperature and corrosion-resistant materials with a hermetic seal to withstand harsh combustion environments.
- Optimized Performance: Facilitates efficient combustion, helping to minimize fuel wastage and maintain peak thermal efficiency.
How do I troubleshoot a suspected faulty cad cell?
To test, disconnect one yellow lead from the F-F terminals on the primary control. If the burner starts, the cell may be seeing external light, be shorted, or have failed. Use an ohmmeter while the burner is running; a functional cell should read between 300 and 1000 ohms. Resistance over 1600 ohms typically indicates a dirty or defective sensor.
Are these compatible with GeniSys primary controls?
Yes, these 596101 replacement eyes are the standard sensing element for the Beckett GeniSys 7505 and 7575 series, as well as other common oil primary controls requiring a cad cell input.
Does this pack include the wiring leads?
No, the 596101BU is a bulk pack of the eyes only. If your existing wiring is damaged or brittle, you will need to purchase the 7006U kit or individual leads separately.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
