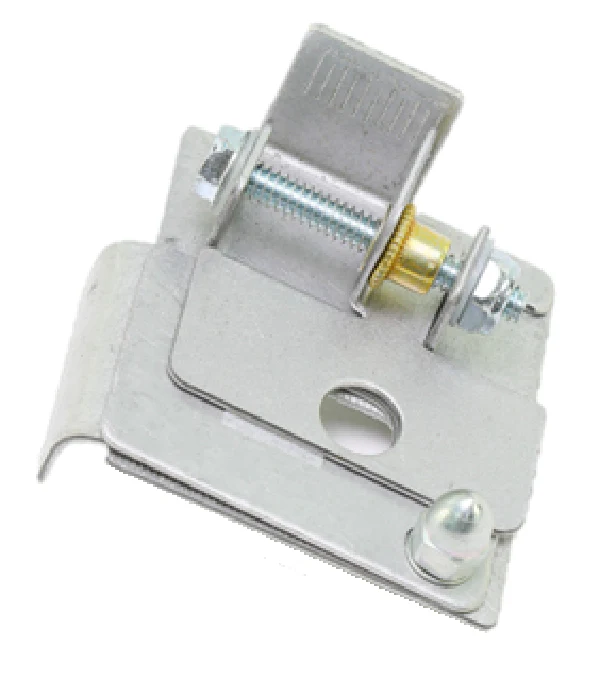

Beckett Igniter 52000U Adjustment Kit
The Beckett 52000U Igniter Adjustment Kit is a critical OEM replacement component designed specifically for the Beckett NX series oil burner. As a veteran-grade NX adjustable air head mechanism, this assembly allows for precise combustion air adjustment, ensuring your burner operates at peak thermal efficiency. By accurately positioning the nozzle line bulkhead relative to the burner's end cone stops, technicians can eliminate ignition failure and reduce soot accumulation through a cleaner, more stable flame profile. This genuine Beckett burner part replaces worn or seized mechanisms that prevent accurate air-to-fuel ratio tuning, which is essential for meeting modern HVAC efficiency standards.
For field professionals, the 52000U kit simplifies the calibration process. The mechanism includes a clear adjustment scale and pointer for setting the zero position before locking in the final head settings using the double acorn nut configuration. Whether you are performing a seasonal tune-up or a full oil burner repair, integrating this OEM combustion head kit ensures the NX electrode assembly remains correctly gapped and aligned. This prevents improper draft readings and high stack temperatures that lead to excessive fuel consumption and equipment stress.
Key Benefits
- Precise Calibration: Features a dedicated adjustment screw and pointer to lock in OEM-specified head settings for optimal airflow.
- OEM Compatibility: Designed exclusively as a direct-fit Beckett NX burner replacement part, ensuring zero-clearance issues during installation.
- Enhanced Combustion: Facilitates clean-burn technology by allowing fine-tuned control over the primary air intake.
- Industrial Durability: Constructed with heavy-duty materials to withstand the high-temperature environment of a residential oil burner housing.
Common Questions
Will this adjustment kit fit standard Beckett AF or AFG burners?
No, the 52000U adjustment mech is engineered specifically for the NX series burner architecture. While many Beckett components are cross-compatible, the NX adjustable air head uses a unique mounting profile that is not interchangeable with AF or AFG models.
Does this kit include the splined nut and bulkhead fitting?
This kit typically includes the adjustable air head mechanism assembly. It is common practice to inspect the Beckett splined nut (#3666) and connector tube assembly for wear while the rear access door is open, as these components work in tandem with the 52000U for proper pressure regulation.
How do I set the zero position on this mechanism?
Slide the nozzle line assembly forward until the retention head engages the fixed stops in the air tube. Align the pointer to the zero mark on the scale and tighten the upper left acorn nut to establish the baseline before making final combustion settings.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
