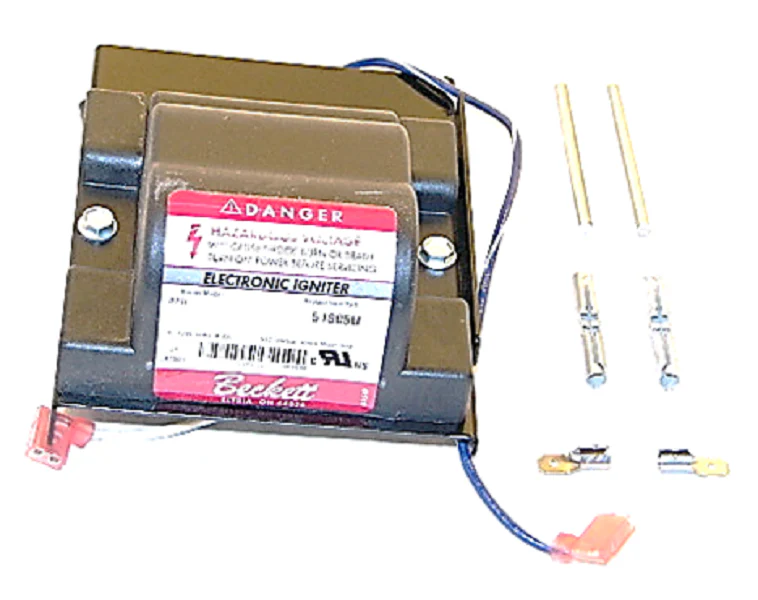

Beckett Igniter 51805U Electronic Ignitor
For contractors maintaining oil-fired heating systems, the Beckett 51805U Electronic Ignitor is a robust, solid-state replacement engineered for dependable performance. This 120VAC igniter is designed to seamlessly replace conventional ignition transformers, offering a significant upgrade in reliability and efficiency for various Beckett oil burners, including AF, AFG, SF, SFG, NX, NXG, and AFII series. Operating on 120 VAC, 60 Hz with a 35 VA input, it delivers a powerful 6 kV RMS and 20 kV Peak output at 35 mA RMS, ensuring quick and efficient ignition cycles. Its compact, lightweight design (approximately 1.1 lbs) and adaptable baseplate compatibility simplify installation across diverse setups. The unit features a high-temperature thermoplastic case and vacuum-encapsulated synthetic resin for superior moisture resistance, heat dissipation, and electrical insulation, making it a durable choice for demanding HVACR environments. This Beckett oil burner ignition component is UL recognized in both the US and Canada, built to perform reliably within an ambient operating temperature range of -20°F to 150°F.
- Key Benefits:
- Enhanced Ignition: Delivers a consistent 20 kV peak output for reliable burner starts.
- Broad Compatibility: Universal design fits multiple Beckett burner models and various transformer baseplates.
- Durable Construction: High-temperature thermoplastic and vacuum encapsulation resist moisture and impact.
- Energy Efficient: Modern solid-state design replaces older, less efficient transformers.
- Simplified Installation: Compact and lightweight with integrated wire management features.
Common Questions:
- What Beckett burners is the 51805U compatible with? This igniter is compatible with Beckett AF, AFG, SF, SFG, NX, NXG, and AFII series oil burners, and its versatile design allows it to adapt to many other manufacturers' transformer baseplates.
- Does this igniter replace older transformer models? Yes, the 51805U is specifically engineered as a direct, solid-state replacement for traditional iron-core ignition transformers and older Beckett igniter models like 5260101U, 51402U, and 747501.
- What are the electrical specifications for this unit? The igniter requires a 120 VAC, 60 Hz input at 35 VA and provides an output of 6 kV RMS, 20 kV Peak, and 35 mA RMS for consistent spark generation.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
