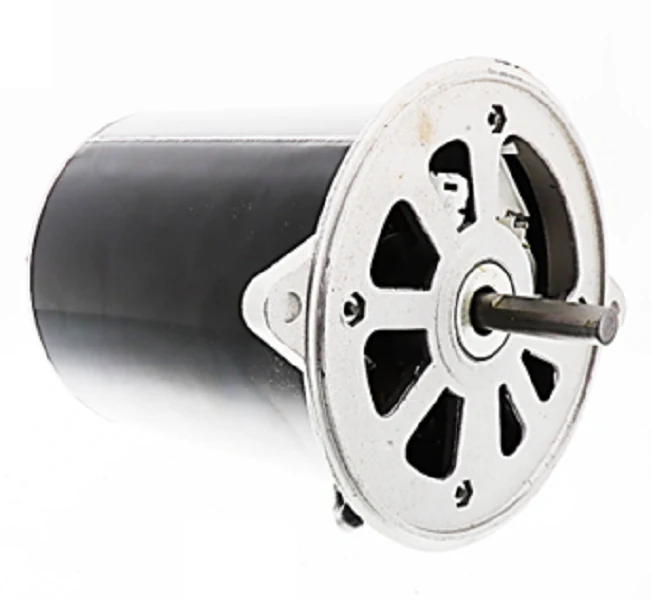

Beckett Igniter 2364U Motor
The Beckett 2364U Motor is a high-performance 1/4 HP burner motor engineered for heavy-duty oil burner applications, specifically designed to meet the rigorous demands of Beckett AFG burners. Operating at a standard 3450 RPM with a NEMA 48N frame, this permanent split capacitor (PSC) motor provides the high-torque output necessary for consistent combustion air delivery. It operates on 115V single-phase power and features a manual reset thermal overload protector to prevent winding failure during high-load conditions. As a direct OEM replacement oil burner motor, it ensures proper shaft alignment and flange concentricity, crucial for maintaining optimal pump coupling life and minimizing vibration. For technicians servicing residential or light commercial heating systems, the Beckett 2364U offers the mechanical reliability required for cold-start environments and continuous run cycles. Its heavy-duty construction and ball-bearing design make it the industry standard for oil burner motor replacement in various Beckett chassis configurations.
- High-Torque Performance: 1/4 HP and 3450 RPM specifications provide consistent air-to-fuel ratios for clean combustion.
- OEM Compatibility: Specifically designed for Beckett burner parts integration, ensuring a perfect fit with the blower wheel and fuel pump.
- Enhanced Thermal Protection: Integrated manual reset prevents motor burnout during unexpected system surges or mechanical obstructions.
- Durable NEMA 48N Frame: Precision-engineered housing facilitates efficient heat dissipation and robust mounting stability.
- PSC Design: Permanent split capacitor technology offers improved energy efficiency and higher starting torque compared to split-phase motors.
Common Technical Questions
What are the rotation and shaft specifications for the Beckett 2364U?
This motor typically features a Counter-Clockwise Lead End (CCWLE) rotation with a standard 1/2-inch shaft diameter, designed to mate directly with Beckett burner couplings.
Can this motor replace a 1/7 HP motor in a Beckett AFG burner?
Yes, the 1/4 HP 3450 RPM motor is a common upgrade for older 1/7 HP models, providing more robust performance and better handling of modern high-static pressure requirements.
Does the 2364U require an external capacitor?
No, this is a self-contained unit with the capacitor typically mounted on the motor housing, simplifying the wiring process for field technicians.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
