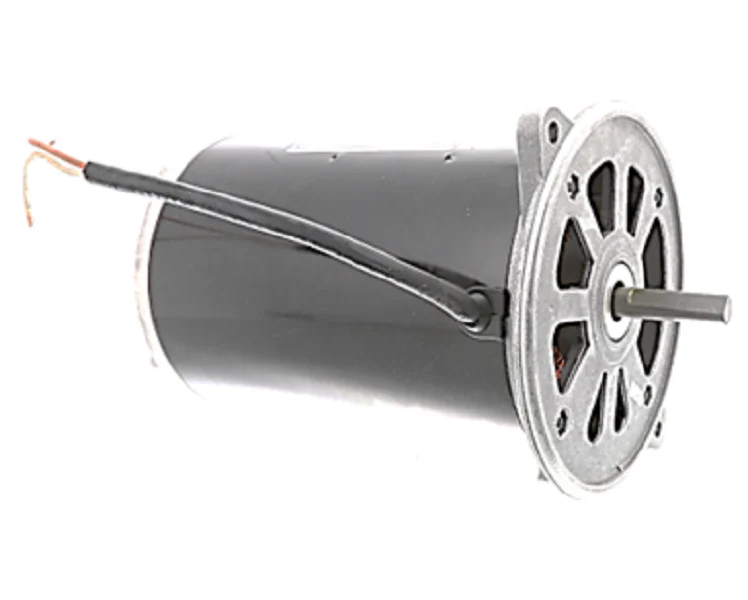

Beckett Igniter 21401U Motor
The Beckett 21401U Motor is a high-performance PSC burner motor designed for reliable ignition and combustion air delivery in residential oil heat applications. Operating at 100-115V 1ph, this 1/2 HP replacement motor delivers a consistent 3450 RPM, ensuring the necessary static pressure for high-efficiency burners. It features a CCW rotation (lead end) and is engineered with a NEMA 48M flange for seamless integration with Beckett AFG, AF, and NX series burner chassis. The internal centrifugal switch and permanent split capacitor design minimize amp draw during the start-up cycle, reducing component fatigue and extending the service life of the primary control. When troubleshooting oil burner motor failure, verifying the B1002 motor compatibility and shaft alignment is critical for avoiding vibration issues and ensuring proper flame geometry. This ball-bearing motor is built to withstand high-ambient boiler room environments, providing the torque required for consistent fuel pump engagement.
Key Performance Benefits
- 1/2 HP Output: Provides superior torque for driving both the fan wheel and high-pressure fuel pumps.
- 3450 RPM High-Speed Operation: Optimized for the airflow requirements of Beckett AFG burners.
- High-Ambient Reliability: 115V single-phase design with thermal overload protection for safe operation in tight mechanical rooms.
- Direct Fit Replacement: Standard NEMA flange mounting allows for quick field installation on Beckett oil burners.
- Energy-Efficient PSC Design: Maintains lower operating temperatures to prevent premature insulation breakdown.
Common Questions
Is the Beckett 21401U compatible with other burner brands?
While specifically designed for Beckett chassis, this 48M frame motor can replace other motors with matching voltage, RPM, and CCW rotation, provided the mounting flange and shaft dimensions align.
Can I use this motor on a 220V circuit?
No, this unit is rated strictly for 110-120V AC. Applying 220V will cause immediate winding failure and potential damage to the electronic igniter.
How do I verify the rotation for my Beckett burner?
The 21401U is Counter-Clockwise (CCW) rotation. Always verify the rotation of your existing blower wheel before installation to ensure proper combustion airflow.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
