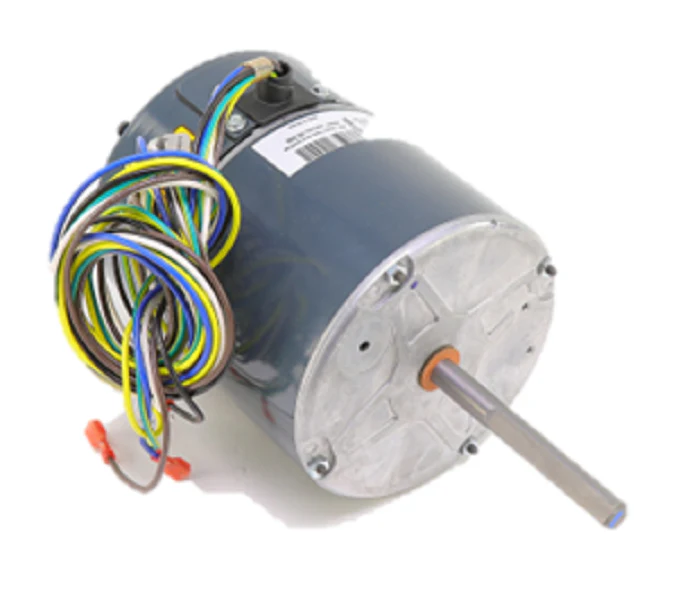

Bard S8106-053-0097 Motor
The Bard S8106-053-0097 Motor is a precision-engineered ECM condenser fan motor specifically programmed for compatibility with select Bard wall-mount HVAC systems. This 1/3 HP brushless DC motor operates at 230V and features an 825 RPM rating, designed to maintain optimal static pressure and airflow across the condenser coil. Unlike generic motors, this programmed replacement motor arrives with the specific torque profiles and rotation parameters required for Bard wall-mount units, ensuring seamless integration with the existing control board. High-efficiency ECM technology reduces power consumption and heat output compared to traditional PSC motors, extending the service life of the fan assembly and improving overall EER. When performing a condenser motor replacement, verifying the 5-pin and 4-pin harness compatibility is essential for maintaining the communication logic between the thermostat and the outdoor section.
Key Benefits
- OEM Programmed Performance: Pre-flashed with Bard-specific software to ensure correct CFM output and ramp-up speeds.
- High-Efficiency ECM Design: Lowers operational amperage draw, reducing strain on the electrical circuit.
- Durable Construction: Built with sealed ball bearings to withstand the high-temperature environments of outdoor condenser sections.
- Direct Application Compatibility: Specifically engineered for Bard HVAC parts lists to eliminate field-programming errors.
Common Questions
Is this motor compatible with PSC-to-ECM conversion?
This motor is a direct replacement for units originally equipped with the S8106-053-0097 series. If upgrading from a PSC motor, additional wiring and control board modifications may be required.
Does the S8106-053-0097 require a capacitor?
No, as an electronically commutated motor, it utilizes internal rectifiers and control logic rather than an external run capacitor.
What causes typical failure in these programmed motors?
Most failures result from voltage surges or moisture ingress in the control module. Always ensure the drip loop is properly formed on the wiring harness during installation.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
