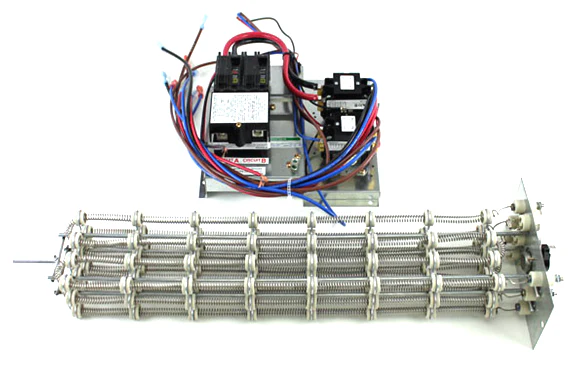

Bard HVAC EHWA03-A15B Heat Kit
The Bard EHWA03-A15B 15kW Electric Heat Kit is a field-installable wall mount heater package engineered specifically for Bard WA302-A, WA361-A, WA372-A, W30Ax-A, and W36Ax-A 2.5 and 3-ton units. This single-phase, 208/240V supplemental heating solution delivers 51,195 BTU/hr, utilizing a point suspension element support system to eliminate hot spots and improve thermal longevity. Designed for seamless integration, this 15kW heat strip features modular control plugs and rounded metal corners for streamlined handling during installation. The assembly includes the heater control base, internal heat contactors, and necessary circuit breakers or pull disconnects to meet NEC requirements. Each unit is factory-tested to ensure reliable performance under high-demand cycles, providing essential emergency heat or supplemental capacity for Bard HVAC wall-mount air conditioners and heat pumps.
Technical Benefits for Contractors
- Universal Compatibility: Specifically designed for Bard 2.5 and 3-ton series, including WA and W30/W36 legacy and current models.
- Integrated Safety Components: Equipped with factory-installed circuit breakers and high-limit thermal cutouts for reliable circuit protection.
- Optimized Airflow Design: Point suspension elements reduce resistance and prevent high-temperature stress on the heater coils.
- Plumb-and-Play Wiring: Modular disconnect and control plugs drastically reduce field wiring time and potential terminal errors.
Common Questions
Is this 15kW heat kit compatible with 460V three-phase units?
No, the EHWA03-A15B is designed specifically for 208/240V single-phase (1 ph) applications. Check your system data plate for voltage and phase requirements before installation.
Does this kit include the circuit breakers?
Yes, this package includes the necessary circuit breakers or pull disconnects required for the specific Bard wall-mount configuration it serves.
Can this be used for primary heating in cold climates?
With a 51,195 BTU/hr output, it is highly effective for supplemental or emergency heat, though your total heat load calculation should determine if it meets primary heating requirements for your specific square footage.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
