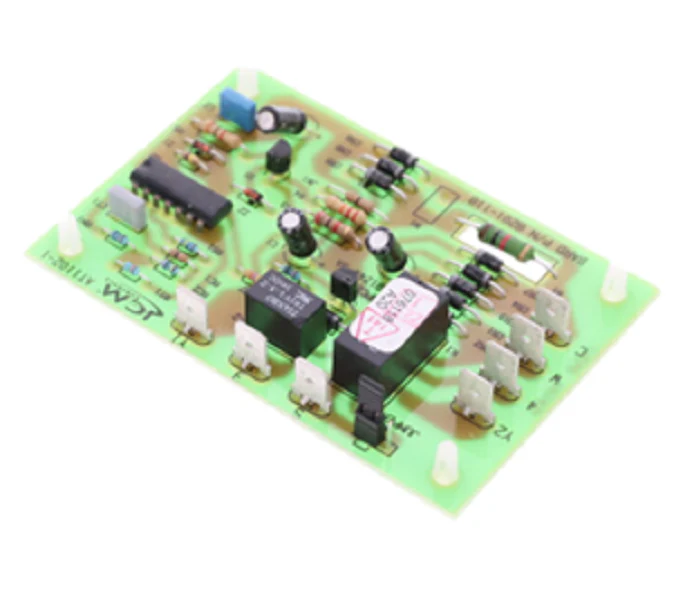

Bard HVAC 8201-118BX Blower Control
The Bard 8201-118BX Blower Control serves as the direct OEM replacement for the discontinued 8201-118 model, engineered specifically for Bard wall-mount heat pumps and air conditioners. This HVAC blower control board functions as the central logic processor for air handler operations, managing the timing and sequencing of the indoor blower motor to ensure optimal CFM delivery across the coil. Designed for professional installation, this Bard replacement control board features a 24V input circuit and high-amperage relay outputs to handle the inductive load of constant-torque motors or multi-speed PSC blowers. When troubleshooting Bard HVAC units with intermittent fan failure or "short-cycling" blower symptoms, replacing the faulty logic board with the 8201-118BX restores the precise delay-on-break and delay-on-make sequences required for system efficiency and heat exchanger protection. Professional technicians rely on this OEM Bard control to maintain factory specifications and ensure pin-to-pin wiring compatibility without field modifications.
Key Benefits for Field Installation- Direct OEM Fit: Drop-in replacement for the legacy 8201-118, eliminating the need for terminal re-pinning or bracket modifications.
- Advanced Timing Logic: Integrated timing circuits manage blower motor ramp speeds to maximize latent heat removal and prevent coil icing.
- Industrial-Grade Components: Built with robust relays and traces to withstand the high-temperature environments typical of Bard wall-mount units.
- Protective Coating: Features a moisture-resistant substrate to prevent corrosion on communication headers and power terminals in high-humidity applications.
Is the 8201-118BX compatible with older Bard 8201-118 installations?
Yes, the 8201-118BX is the designated engineering update for the 8201-118, maintaining identical electrical parameters and mounting footprints for rapid field service.
What are the symptoms of a failing Bard blower control board?
Common failure points include scorched relay contacts, failure to energize the blower motor despite a 24V "G" call from the thermostat, or the fan staying energized indefinitely after the cooling cycle ends.
Does this board support both single-phase and three-phase Bard units?
This control board manages the low-voltage logic and blower relay functions for the indoor fan assembly; however, verifying the specific wiring diagram on the unit housing is required to ensure voltage compatibility for the load side.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
