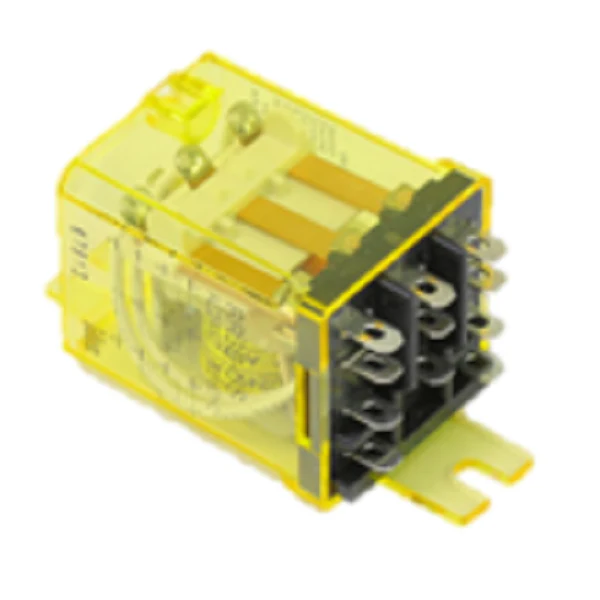

Bard HVAC 8201-071 Relay
For field technicians and contractors maintaining Bard HVAC systems, the Bard 8201-071 Relay is the precise OEM replacement relay required for critical control circuit applications. This 3PDT (Triple Pole Double Throw) relay is engineered to handle complex switching requirements, featuring a 24V low-voltage coil and heavy-duty contacts rated for 7A at 240V. Whether you are troubleshooting wall-mount units or multi-stage heating systems, this switching relay ensures seamless logic transitions and reliable power distribution to fans, compressors, or auxiliary heaters. Its triple pole configuration provides the versatility needed for simultaneous circuit management, reducing the footprint within the control cabinet while maintaining high dielectric strength and mechanical longevity in demanding environments.
Key Benefits for the Contractor:
- Direct OEM Fit: Drop-in replacement for Bard part number 8201-071, eliminating the need for wiring modifications or bracket adjustments.
- High Contact Rating: Rated for 7 Amps at 240VAC, providing a robust buffer for standard HVAC inductive loads.
- 3PDT Logic: Allows for the simultaneous switching of three separate circuits, essential for complex Bard control boards and interlocking sequences.
- Reliable 24V Activation: Designed for standard thermostat and transformer control circuits, ensuring consistent pull-in even during peak load demands.
- Industrial Build: Engineered to withstand the high-cycle rates and thermal fluctuations common in air conditioning and heating systems.
Common Questions & Technical Support:
Can I use this relay to replace a 2-pole relay?
Yes, as a 3PDT relay, this unit can replace single or double pole relays provided the 24V coil voltage and 7A load ratings align with the original specifications. Always utilize the extra poles as needed for simplified circuit logic.
What is the primary function of the 8201-071 in Bard wall-mount units?
This HVAC relay is frequently utilized for high/low-speed fan switching, compressor staging, or as an isolation relay between the thermostat and high-voltage line components.
Is this compatible with non-Bard systems?
While designed as a Bard HVAC replacement part, this is a standard general-purpose switching relay. If the mounting footprint, 24VDC/VAC coil, and contact amperage meet your system's requirements, it can be utilized in various multi-stage applications.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
