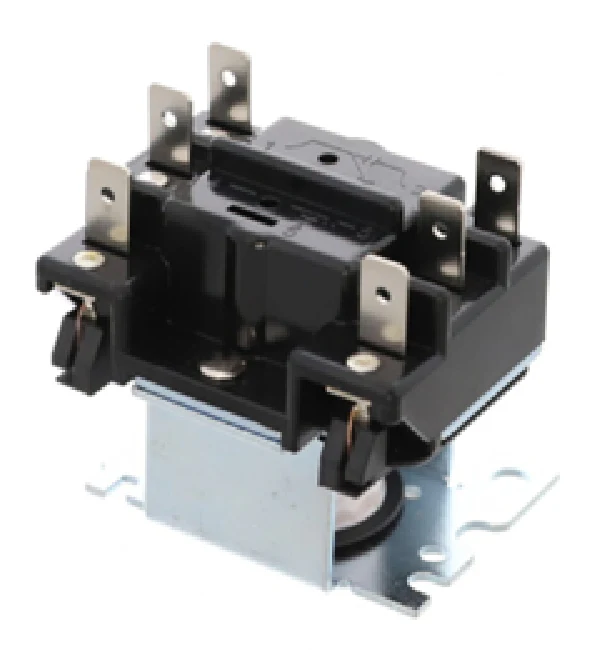

Bard HVAC 8201-013BX Relay
The Bard HVAC 8201-013BX Relay is a heavy-duty DPST NO relay (Double Pole Single Throw, Normally Open) engineered for specialized control within Bard wall-mount units and packaged HVAC systems. This component serves as the direct replacement for 8201-013, providing a seamless field upgrade while maintaining original equipment manufacturer (OEM) standards for timing and internal resistance. Designed for power switching and circuit isolation, the 8201-013BX effectively manages inductive loads across two independent circuits, preventing voltage spikes and improving control circuit stability in demanding commercial and industrial environments.
For service technicians performing routine maintenance or emergency repairs, this Bard replacement relay ensures electrical compatibility with existing low-voltage terminal boxes. The robust internal contacts are rated for high-cycle reliability, reducing the risk of relay contact welding or mechanical failure under sustained current. Integrating this DPST HVAC relay into your system diagnostic workflow simplifies the replacement process, as the 8201-013BX matches the form, fit, and function of the legacy 8201-013 model without requiring structural modifications to the control panel.
Key Benefits for Technicians- Universal Compatibility: Serves as the verified 8201-013 direct replacement for Bard Manufacturing systems, ensuring zero-latency switching.
- Dual-Circuit Control: The DPST NO configuration allows for the simultaneous management of two separate electrical paths from a single pilot signal.
- Enhanced Protection: High-grade OEM relay components protect sensitive logic boards from back-EMF and short-circuit conditions.
- Optimized Footprint: Designed for standard HVAC control panel mounting, allowing for rapid installation in compact equipment housings.
- Is the 8201-013BX compatible with older Bard units? Yes, this part is specifically designed to replace the now-discontinued 8201-013 relay used in various wall-mount air conditioners and heat pumps.
- What does DPST NO signify for this part? This means the relay features a Double Pole, Single Throw configuration that is Normally Open, meaning it will only close the circuits when the coil is energized.
- Is any wiring modification required when upgrading from the 8201-013? No, this is a drop-in 8201-013BX Bard relay replacement with identical terminal layouts to ensure a quick transition.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
