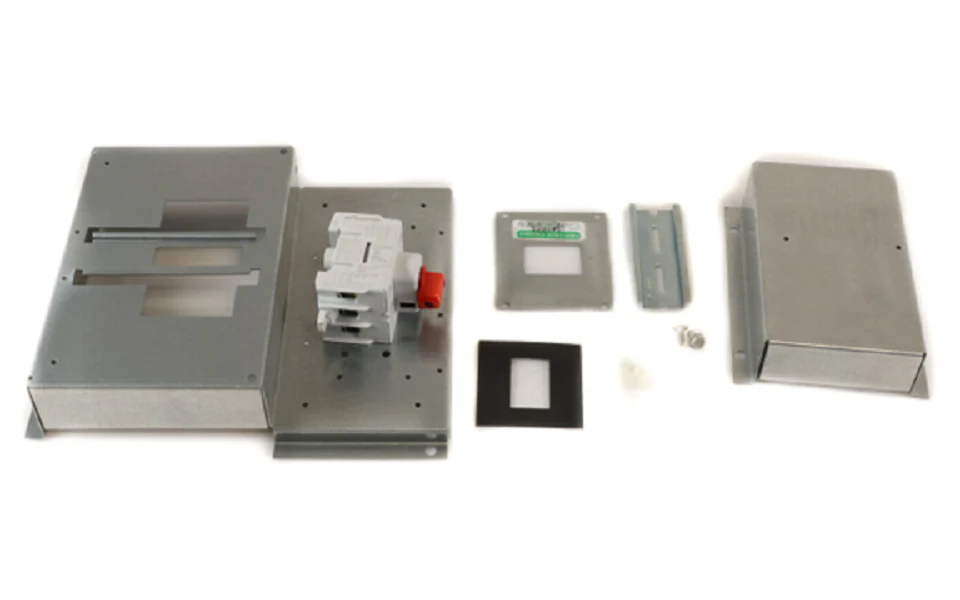

Bard 8620-333 Rotary Dis
The Bard 8620-333 is a 460V 40A rotary disconnect switch designed for field installation on heavy-duty HVAC units. Built for industrial environments, this three-phase electrical disconnect provides a local, lockable point of power interruption for maintenance personnel, ensuring OSHA compliance and system safety. The assembly includes a rugged rotary handle mechanism and internal switchgear capable of handling a 40-amp full-load current at high voltage. This component is specifically engineered for Bard wall-mount heat pumps and air conditioners, offering a direct-fit replacement or upgrade for factory electrical panels. By utilizing this NEMA rated disconnect, technicians can ensure proper overcurrent protection and isolation during diagnostics or motor replacements. The 8620-333 rotary switch eliminates the need for external pull-outs in many applications, streamlining the electrical footprint of the installation while maintaining high dielectric strength and mechanical reliability under continuous thermal loads.
Key Benefits
- Direct Compatibility: Engineered specifically for integration with Bard HVAC equipment electrical sections.
- High Voltage Capacity: Rated for 460V AC applications with a 40-amp current carrying capacity.
- Enhanced Safety: Features a high-visibility rotary handle that supports lockout/tagout (LOTO) procedures.
- Field Serviceability: Simplifies internal power distribution and allows for rapid electrical isolation.
- Durable Construction: Built to withstand the constant vibration and temperature fluctuations common in outdoor HVAC environments.
Common Questions
Is the 8620-333 compatible with 230V systems?
No, this specific model is designed for 460V three-phase power circuits. Installing this on lower voltage systems may not meet local code requirements or specific amperage trip curves.
Does the assembly include the external handle and linkage?
Yes, the Bard 8620-333 comes as a complete rotary disconnect kit, including the internal switch and the external operating handle for the cabinet door.
Can this disconnect be used for motor branch circuit protection?
This unit serves as a load-break rated switch, providing manual motor disconnection as required by National Electrical Code (NEC) standards for HVAC equipment.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
