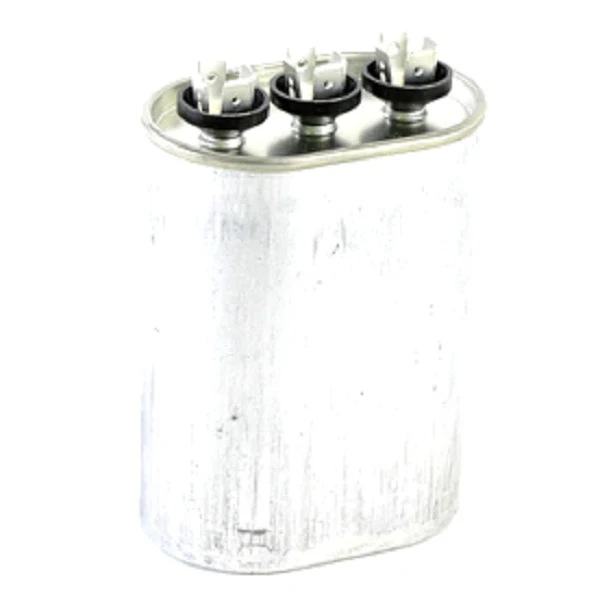

Bard 8552-055 Run Capacitor
The Bard 8552-055 40/10 MFD 440VAC Oval Dual Run Capacitor is a high-performance electrical component engineered for precise current phase shifting in primary HVAC motor and compressor circuits. This OEM-spec unit provides a critical 40 microfarad start-up boost for the compressor and a 10 microfarad load for the condenser fan motor, ensuring the 440 volt AC electrical system operates at peak efficiency. Designed with a robust oval metal casing, this dual-rated capacitor manages the heat dissipation required for continuous-duty operation in demanding industrial wall-mount air conditioners and packaged heat pumps.
For technicians at the job site, the 8552-055BX serves as the direct factory replacement, featuring three-prong 1/4" male push-on terminals for a clean, secure interface. Maintaining the correct capacitance tolerance is essential to prevent high-amperage draws and subsequent motor winding failure. This HVAC dual run capacitor is rated for 50/60 Hz and is specifically categorized under HTS code 8532.10.0000. It effectively resolves common field issues such as humming motors, hard starting, and thermal overload tripping in legacy Bard equipment.
Key Benefits- Dual 40/10 MFD ratings support simultaneous compressor and fan motor operation from a single footprint.
- Heavy-duty 440VAC rating provides superior dielectric strength compared to 370V alternatives.
- The oval dual run capacitor design ensures compatibility with standard Bard mounting brackets and control boxes.
- Constructed for high-temperature stability to prevent capacitance drop during peak summer loads.
- Standardized 1/4" quick-connect terminals allow for rapid field installation and troubleshooting.
Can I use a 370V capacitor to replace the 8552-055?
No. In professional HVACR applications, you can always go up in voltage rating (e.g., using a 440V to replace a 370V), but you must never go down. This 440VAC unit is required to handle the peak voltage spikes inherent in industrial Bard equipment.
What are the symptoms of a failing 40/10 MFD capacitor?
A veteran tech will look for physical bulging of the oval casing, oil leakage, or "hard starting" where the compressor hums but fails to turn over. Using a multimeter to check the microfarad reading at the 'Herm' and 'Fan' terminals is the only way to confirm it is within the +/- 6% tolerance.
Is the 8552-055BX different from the standard 8552-055?
The "BX" suffix indicates the part is boxed for individual retail or replacement sale. Electrically and physically, the 8552-055BX is the exact functional equivalent and primary replacement for the base part number.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $46.26
-65%$46.26
$16.19Bard 8552-055 Run Capacitor
The Bard 8552-055 40/10 MFD 440VAC Oval Dual Run Capacitor is a high-performance electrical component engineered for precise current phase shifting in primary HVAC motor and compressor circuits. This OEM-spec unit provides a critical 40 microfarad start-up boost for the compressor and a 10 microfarad load for the condenser fan motor, ensuring the 440 volt AC electrical system operates at peak efficiency. Designed with a robust oval metal casing, this dual-rated capacitor manages the heat dissipation required for continuous-duty operation in demanding industrial wall-mount air conditioners and packaged heat pumps.
For technicians at the job site, the 8552-055BX serves as the direct factory replacement, featuring three-prong 1/4" male push-on terminals for a clean, secure interface. Maintaining the correct capacitance tolerance is essential to prevent high-amperage draws and subsequent motor winding failure. This HVAC dual run capacitor is rated for 50/60 Hz and is specifically categorized under HTS code 8532.10.0000. It effectively resolves common field issues such as humming motors, hard starting, and thermal overload tripping in legacy Bard equipment.
Key Benefits- Dual 40/10 MFD ratings support simultaneous compressor and fan motor operation from a single footprint.
- Heavy-duty 440VAC rating provides superior dielectric strength compared to 370V alternatives.
- The oval dual run capacitor design ensures compatibility with standard Bard mounting brackets and control boxes.
- Constructed for high-temperature stability to prevent capacitance drop during peak summer loads.
- Standardized 1/4" quick-connect terminals allow for rapid field installation and troubleshooting.
Can I use a 370V capacitor to replace the 8552-055?
No. In professional HVACR applications, you can always go up in voltage rating (e.g., using a 440V to replace a 370V), but you must never go down. This 440VAC unit is required to handle the peak voltage spikes inherent in industrial Bard equipment.
What are the symptoms of a failing 40/10 MFD capacitor?
A veteran tech will look for physical bulging of the oval casing, oil leakage, or "hard starting" where the compressor hums but fails to turn over. Using a multimeter to check the microfarad reading at the 'Herm' and 'Fan' terminals is the only way to confirm it is within the +/- 6% tolerance.
Is the 8552-055BX different from the standard 8552-055?
The "BX" suffix indicates the part is boxed for individual retail or replacement sale. Electrically and physically, the 8552-055BX is the exact functional equivalent and primary replacement for the base part number.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
