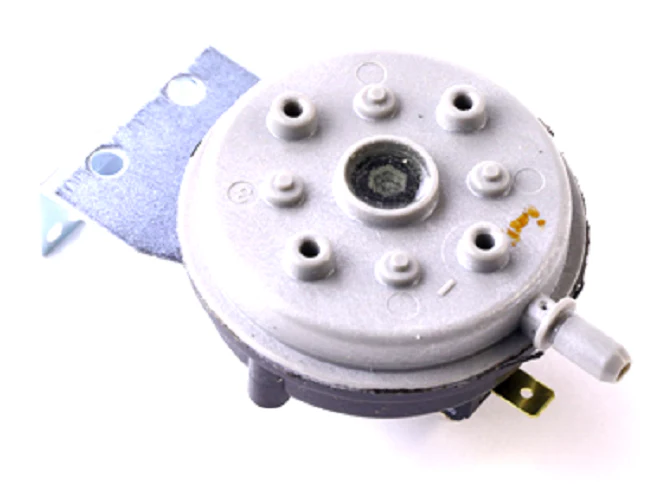

Bard 8406-103 Pressure Switch
The Bard 8406-103 Pressure Switch is a critical safety component designed for precise monitoring of airflow and pressure differentials in Bard wall-mount heat pumps and air conditioning units. This HVAC pressure switch features a specific factory set point of .55+/-.05" WC, ensuring that the system shuts down or identifies faults if static pressure falls outside of safe operating parameters. As a genuine Bard replacement part, it facilitates seamless integration with existing control boards and wiring harnesses, maintaining the integrity of the original equipment manufacturer (OEM) specifications. Contractors often utilize this differential pressure switch when troubleshooting Bard unit airflow issues or resolving lockout codes related to venting and blower motor performance. Its robust construction is engineered to withstand the high-cycle demands of commercial and industrial HVACR environments, providing accurate switching logic for HVAC system safety across varied environmental conditions.
Key Technical Benefits- Precision Calibration: Pre-set at .55+/-.05" water column to ensure accurate sensing of air pressure differentials.
- OEM Compatibility: Specifically engineered for Bard units to eliminate the mounting and electrical alignment issues associated with universal parts.
- System Protection: Effectively prevents compressor damage and improper combustion by monitoring critical airflow thresholds.
- Durable Contacts: Features high-quality electrical terminals to resist corrosion and ensure reliable signal transmission to the control board.
How do I troubleshoot a Bard 8406-103 pressure switch?
Verify the integrity of the sensing tubes for cracks or moisture. Use a manometer to confirm the system is reaching the .55" WC threshold while checking for electrical continuity across the terminals when the set point is achieved.
Can I use a universal pressure switch instead of the 8406-103?
While universal switches exist, the tight tolerance of .55+/-.05" is specific to Bard’s safety logic. Using a non-OEM component may lead to nuisance trips or unsafe operating conditions.
What causes this switch to fail?
Common failure points include diaphragm fatigue over time, clogged pitot tubes, or carbon buildup on the electrical contacts due to high-voltage cycling.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
