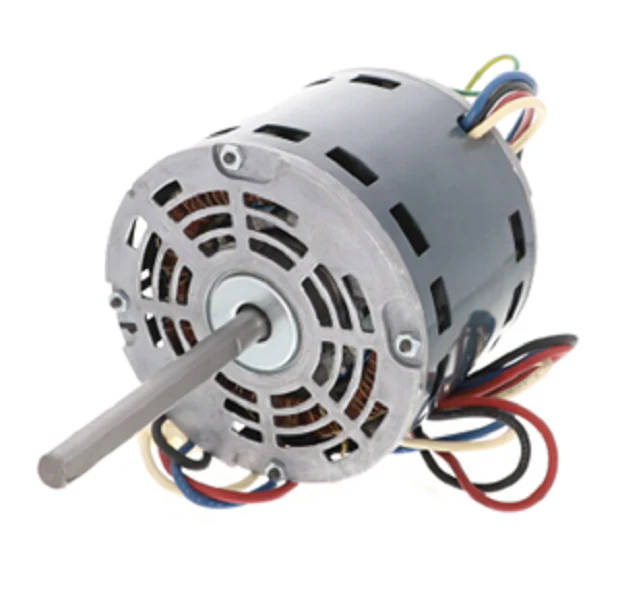

Bard 8105-040BX Motor
The Bard 8105-040BX Motor is a direct-drive, high-performance blower motor designed for specific Bard wall-mount units and HVAC systems requiring a reliable single-phase, permanent split capacitor (PSC) motor. Operating at 115V with a 1/3 HP output, this motor delivers efficient airflow across three distinct speeds at a 1075 RPM rating. Engineered with an open ventilated enclosure and sleeve bearings, it ensures consistent operation in demanding environmental conditions. This Bard replacement blower motor features a standard 48Y frame and is critical for maintaining static pressure and CFM requirements in WA and WE series units. Proper installation requires checking capacitor requirements and verifying shaft dimensions to match the existing blower wheel. When replacing a PSC blower motor, ensure lead lengths and plug configurations are verified against the unit’s wiring diagram to prevent phase issues or improper rotation during commissioning.
- Multi-Speed Flexibility: 3-speed configuration allows for precise CFM adjustment to meet specific ductwork static pressure requirements.
- OEM Compatibility: Precision-engineered as a direct replacement part for Bard HVAC equipment, ensuring proper mounting and lead connections.
- Industrial Build Quality: Features a high-torque design and thermally protected windings to prevent burnout during continuous duty cycles.
- Optimized Performance: Specifically wound for 115v 1/3hp 1075rpm applications, maintaining system efficiency and airflow balance.
Common Questions
What are the wiring lead colors for the different speeds?
Typically, the Bard 8105-040BX uses industry-standard color coding for its 3-speed leads—Black (High), Blue (Medium), and Red (Low)—but always refer to the specific schematic on the motor housing before termination.
Can I use a different capacitor than what is specified on the motor nameplate?
No. To maintain HVAC motor efficiency and prevent overheating, you must use the microfarad (MFD) and voltage rating specified on the 8105-040BX label.
Is this motor reversible?
It is configured for the standard rotation required in Bard blower assemblies; verify the rotation (CW or CCW) against your existing blower wheel before installation.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
