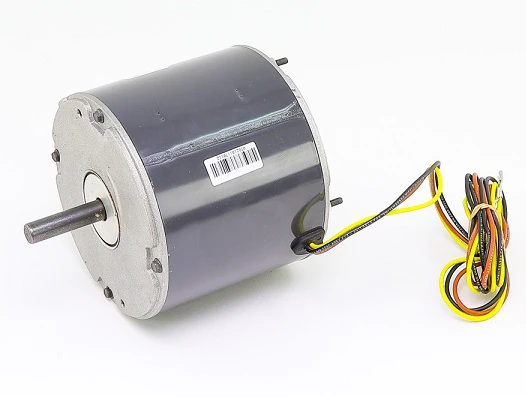

Bard 8104-019 Motor
The Bard 8104-019 Motor is a high-efficiency permanent split capacitor (PSC) motor designed specifically for demanding HVACR applications. Operating at 208-230V single-phase power, this 1/4 HP condenser fan motor delivers a consistent 825 RPM, ensuring optimal airflow and heat exchange for Bard wall-mount units. This direct drive motor is engineered for continuous duty, featuring a totally enclosed air-over (TEAO) housing to protect internal windings from environmental debris and moisture. When replacing a failed Bard fan motor, matching the frame size and RPM rating is critical for maintaining the system's factory-rated static pressure and amperage draw. The 8104-019 motor requires a 5 MFD / 370V capacitor (sold separately) for proper starting torque and operational efficiency. Contractors can rely on this OEM replacement motor for seamless mechanical fitment and long-term reliability in commercial and industrial cooling environments.
Key Benefits- Precision Airflow: The 825 RPM rating ensures the condenser coil maintains correct head pressure during high ambient conditions.
- Industrial Build: Features ball bearing construction and internal thermal protection to prevent burnout during voltage fluctuations.
- Application Specific: Engineered as a drop-in HVAC replacement motor for Bard units, reducing field modification time.
- Environmental Protection: The TEAO enclosure prevents dust and moisture ingress, extending the service life of the single-phase motor.
What capacitor is required for the Bard 8104-019?
This motor typically requires a 5 MFD 370V run capacitor. Always check the motor nameplate for the specific rating before installation.
Can I use a 1075 RPM motor as a substitute?
No, replacing an 825 RPM motor with a higher speed motor will increase the amperage draw, potentially overloading the circuit and reducing dehumidification performance.
Is this motor reversible?
The Bard 8104-019 is usually configured for a specific rotation. Verify the lead end rotation (CW or CCW) against your existing condenser fan motor before mounting.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
