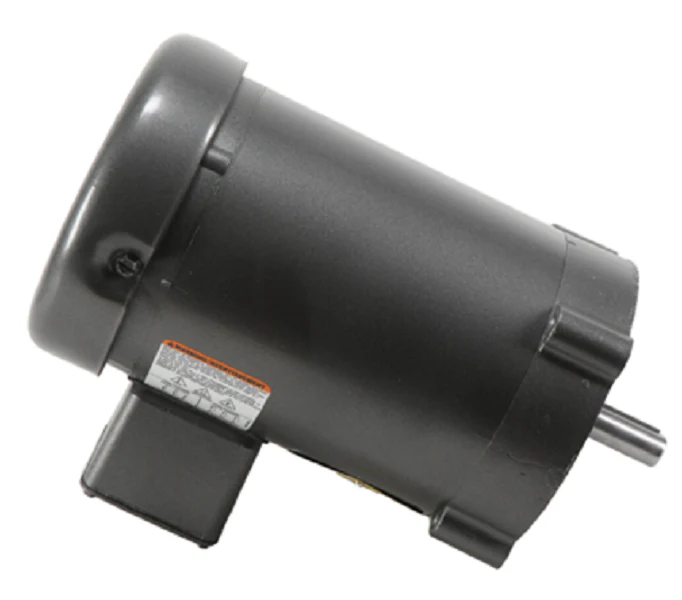

Baldor Motor VM3542 Motor
The Baldor-Reliance VM3542 is a professional-grade 3/4 HP NEMA 56C frame motor designed for reliable performance in demanding commercial and industrial HVACR applications. Operating at 1725 RPM, this three-phase general purpose motor features a TEFC (Totally Enclosed Fan Cooled) enclosure, ensuring protection against contaminants in harsh environments. Engineered for versatility, it supports 208-230/460V power configurations, making it a standard replacement for pumps, fans, and compressors. The C-Face mounting with base allows for secure bolt-on installation, while the ball bearing construction provides durability under high radial loads. With a 1.25 service factor and Class F insulation, this motor sustains efficiency and heat dissipation during continuous operation. For technicians seeking a drop-in 56C frame AC motor, the VM3542 delivers the torque and mechanical reliability required for critical infrastructure maintenance.
Key Benefits
- Industrial Durability: Robust 56C frame with TEFC enclosure protects internal components from dust and moisture.
- NEMA Design B: Delivers consistent starting torque and high efficiency for general-purpose industrial loads.
- Versatile Voltage: Triple-voltage rating (208-230/460V) accommodates varying field power requirements.
- Precision Mounting: Integrated C-Face and base allow for flexible direct-coupled or belt-drive configurations.
- Enhanced Thermal Rating: Class F insulation system supports reliable performance in high-ambient temperature settings.
Common Questions
Can the VM3542 be used with a VFD?
Yes, this three-phase motor is compatible with most variable frequency drives, though technicians should verify the specific inverter-duty speed range for their application requirements.
Is this motor reversible?
Yes, the rotation can be reversed by swapping any two power leads during the wiring process at the terminal box.
Does this motor include the mounting base?
The VM3542 is a C-Face motor that includes a fixed base, providing both face-mount and foot-mount installation options for wider compatibility.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
