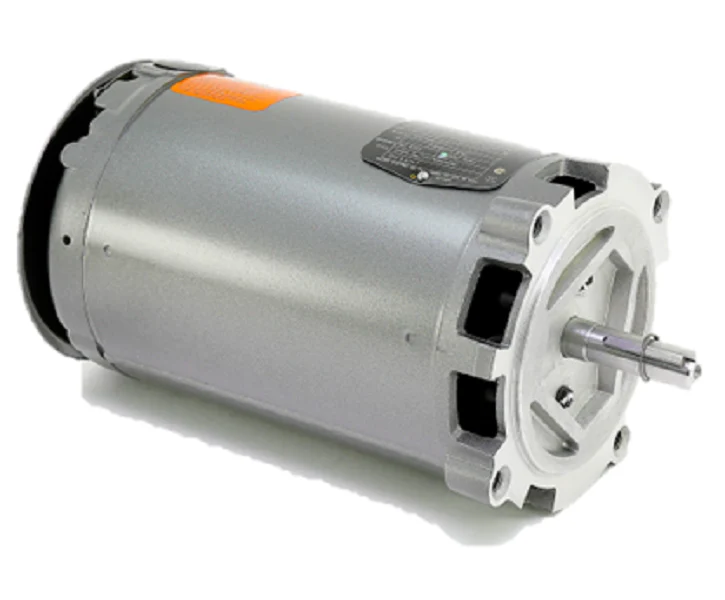

Baldor Motor VL1303A Motor
The Baldor VL1303A is a 1/2 HP single-phase motor engineered for high-demand centrifugal pump applications and industrial fluid handling. Built on a NEMA 56C frame, this C-face footless motor operates at 3450 RPM, providing high-speed performance for non-overloading pump curves. The unit features TEFC (Totally Enclosed Fan Cooled) construction, ensuring the internal windings and Class F insulation are protected from debris and moisture in harsh mechanical rooms. This motor is dual voltage (115/230V), allowing for versatile field wiring depending on the available 60Hz power supply. With a ball bearing design and a high-grade rolled steel shell, the VL1303A maintains structural integrity under continuous load. Technicians will find the 1.25 service factor provides the necessary headroom for varying hydraulic pressures without compromising terminal life or causing premature failure in condensate pump motor replacements.
- NEMA 56C Frame: Footless C-face mounting allows for direct-coupled integration with standard pump heads and flanges.
- Industrial Duty Construction: TEFC enclosure prevents contamination of internal components in humid or dusty HVACR environments.
- High-Speed 2-Pole Performance: 3450 RPM synchronous speed is ideal for high-head, low-flow centrifugal applications.
- Dual Voltage Capability: Easily switchable between 115V or 230V single-phase power to match existing contractor site specifications.
- High Service Factor: A 1.25 service factor ensures the motor can handle temporary overloads beyond its rated 0.5 HP.
Common Questions:
Is the VL1303A compatible with variable frequency drives?
As a single-phase capacitor-start motor, the VL1303A is designed for constant speed operation and is generally not suitable for standard VFD control. For variable flow, we recommend checking torque requirements and starting characteristics.
What are the mechanical mounting requirements for this motor?
This is a footless C-Face motor (56C). It must be bolted directly to the driven equipment's flange. It does not include a base for floor or wall mounting.
Can this motor be used in outdoor or washdown applications?
While the TEFC enclosure offers protection against contaminants, this is not a dedicated washdown-rated motor. For food processing or direct exposure to weather, additional shielding or a washdown-specific model may be required.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
