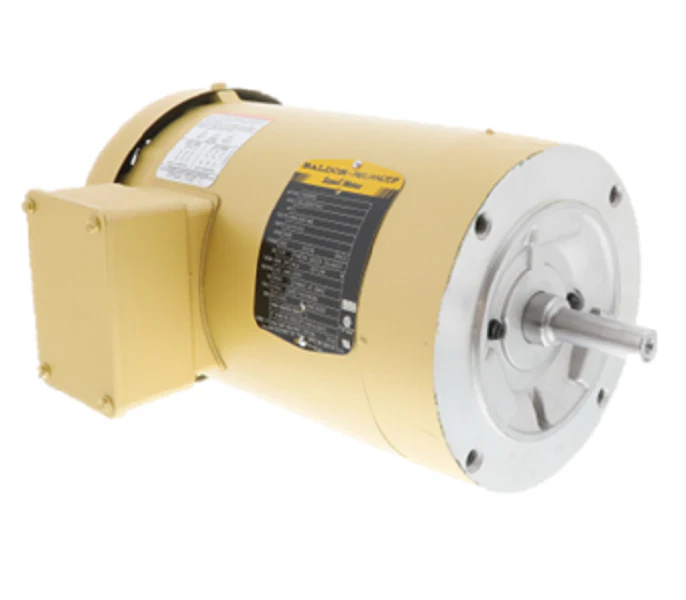

Baldor Motor VEM3555 Motor
The Baldor VEM3555 is a high-performance 2HP 3490RPM 3PH TEFC 56C MOTOR engineered for demanding industrial environments. Built with a NEMA Premium efficiency rating, this three-phase electric motor utilizes a Totally Enclosed Fan Cooled (TEFC) enclosure to prevent the ingress of contaminants, making it ideal for HVACR pump applications, blowers, and compressors. The 56C frame features a C-Face footless mounting design, ensuring a compact footprint for direct-coupled equipment. Operating at 230/460V and 60Hz, this unit delivers a 1.15 service factor and is inverter ready, supporting variable torque applications without compromising thermal stability. High-grade ball bearings and a heavy-gauge steel frame provide the mechanical rigidity required for continuous-duty cycles in commercial air handling and fluid transport systems.
Key Benefits- Optimized Performance: Delivering 3490 RPM at 60Hz, providing the high-speed torque necessary for centrifugal pumps and fans.
- Inverter Compatibility: Rated per NEMA MG1 Part 31.4.4.2, allowing for precise speed control via Variable Frequency Drives (VFD).
- Superior Protection: The TEFC enclosure and Class F insulation protect internal windings from moisture and debris.
- Energy Efficiency: Meets NEMA Premium standards to reduce operational costs and heat generation during long-run cycles.
Is the Baldor VEM3555 suitable for VFD use?
Yes, this model is inverter ready and designed to handle the voltage spikes associated with variable frequency drives in HVACR systems.
What are the mounting requirements for a 56C frame motor?
This motor is a C-Face footless design, meaning it bolts directly to the driven equipment via the face flange and does not have a traditional base plate.
Can this motor operate on 50Hz power?
While optimized for 60Hz, technical data indicates it can often support 190/380V at 50Hz at a reduced horsepower; refer to the nameplate for specific 50Hz ratings.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $948.16
-65%$948.16
$331.86Baldor Motor VEM3555 Motor
The Baldor VEM3555 is a high-performance 2HP 3490RPM 3PH TEFC 56C MOTOR engineered for demanding industrial environments. Built with a NEMA Premium efficiency rating, this three-phase electric motor utilizes a Totally Enclosed Fan Cooled (TEFC) enclosure to prevent the ingress of contaminants, making it ideal for HVACR pump applications, blowers, and compressors. The 56C frame features a C-Face footless mounting design, ensuring a compact footprint for direct-coupled equipment. Operating at 230/460V and 60Hz, this unit delivers a 1.15 service factor and is inverter ready, supporting variable torque applications without compromising thermal stability. High-grade ball bearings and a heavy-gauge steel frame provide the mechanical rigidity required for continuous-duty cycles in commercial air handling and fluid transport systems.
Key Benefits- Optimized Performance: Delivering 3490 RPM at 60Hz, providing the high-speed torque necessary for centrifugal pumps and fans.
- Inverter Compatibility: Rated per NEMA MG1 Part 31.4.4.2, allowing for precise speed control via Variable Frequency Drives (VFD).
- Superior Protection: The TEFC enclosure and Class F insulation protect internal windings from moisture and debris.
- Energy Efficiency: Meets NEMA Premium standards to reduce operational costs and heat generation during long-run cycles.
Is the Baldor VEM3555 suitable for VFD use?
Yes, this model is inverter ready and designed to handle the voltage spikes associated with variable frequency drives in HVACR systems.
What are the mounting requirements for a 56C frame motor?
This motor is a C-Face footless design, meaning it bolts directly to the driven equipment via the face flange and does not have a traditional base plate.
Can this motor operate on 50Hz power?
While optimized for 60Hz, technical data indicates it can often support 190/380V at 50Hz at a reduced horsepower; refer to the nameplate for specific 50Hz ratings.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
