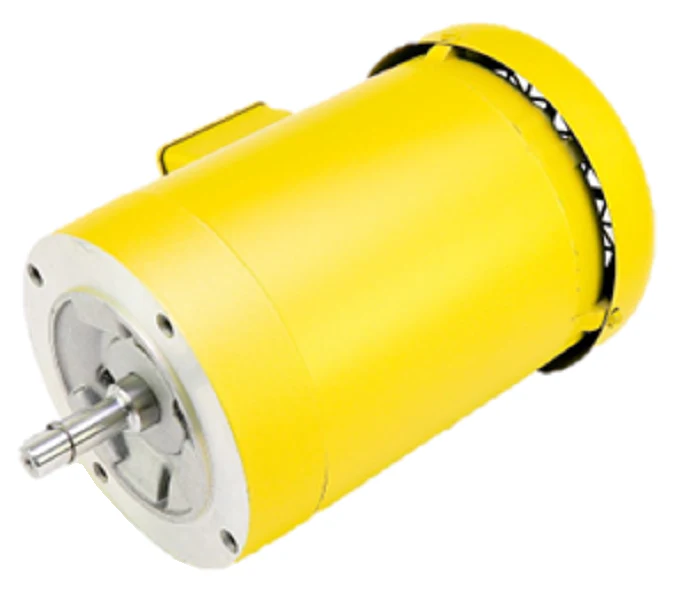

Baldor Motor VEM3546 Motor
The Baldor-Reliance VEM3546 is a high-performance three-phase AC motor engineered for demanding industrial and HVACR applications. Operating at 1 HP with a base speed of 1760 RPM, this NEMA 56C frame motor features a TEFC (Totally Enclosed Fan Cooled) enclosure, ensuring protection against contaminants in harsh environments. Designed for 208-230/460V configurations at 60Hz, it utilizes a C-Face footless mount for precise close-coupled pump or gear reducer integration. The VEM3546 is built with Class F insulation and a 1.15 service factor, providing thermal stability during continuous duty cycles. This general purpose motor incorporates ball bearings and a rolled steel frame, maintaining low vibration levels and high structural integrity. Contractors can rely on this NEMA Premium efficient unit for driving fans, blowers, and pumps where reliable torque and mechanical efficiency are non-negotiable requirements for system uptime.
- High-Efficiency Performance: NEMA Premium efficiency rating reduces operational costs and heat generation in 3-phase industrial motors.
- Durable Construction: Features a moisture-resistant rolled steel frame and TEFC enclosure to extend the service life of internal windings.
- Flexible Installation: The 56C frame footless design allows for streamlined mounting in tight mechanical spaces and direct coupling.
- Reliable Thermal Management: Class F insulation system allows the motor to handle temperature surges without compromising dielectric strength.
Common Questions
What are the wiring options for the VEM3546?
This motor supports tri-voltage wiring, allowing for 208V, 230V, or 460V 3-phase power connections to match common commercial electrical site requirements.
Can this motor be used with a Variable Frequency Drive (VFD)?
Yes, the Baldor VEM3546 is typically rated for inverter link usage, though technicians should verify specific speed range ratios on the nameplate for constant or variable torque loads.
Is this a direct replacement for other 56C frame motors?
Matching the 1760 RPM and NEMA 56C footless physical dimensions is critical; as long as the horsepower and voltage requirements align, it serves as a robust replacement for standard 1HP units.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $795.32
-65%$795.32
$278.36Baldor Motor VEM3546 Motor
The Baldor-Reliance VEM3546 is a high-performance three-phase AC motor engineered for demanding industrial and HVACR applications. Operating at 1 HP with a base speed of 1760 RPM, this NEMA 56C frame motor features a TEFC (Totally Enclosed Fan Cooled) enclosure, ensuring protection against contaminants in harsh environments. Designed for 208-230/460V configurations at 60Hz, it utilizes a C-Face footless mount for precise close-coupled pump or gear reducer integration. The VEM3546 is built with Class F insulation and a 1.15 service factor, providing thermal stability during continuous duty cycles. This general purpose motor incorporates ball bearings and a rolled steel frame, maintaining low vibration levels and high structural integrity. Contractors can rely on this NEMA Premium efficient unit for driving fans, blowers, and pumps where reliable torque and mechanical efficiency are non-negotiable requirements for system uptime.
- High-Efficiency Performance: NEMA Premium efficiency rating reduces operational costs and heat generation in 3-phase industrial motors.
- Durable Construction: Features a moisture-resistant rolled steel frame and TEFC enclosure to extend the service life of internal windings.
- Flexible Installation: The 56C frame footless design allows for streamlined mounting in tight mechanical spaces and direct coupling.
- Reliable Thermal Management: Class F insulation system allows the motor to handle temperature surges without compromising dielectric strength.
Common Questions
What are the wiring options for the VEM3546?
This motor supports tri-voltage wiring, allowing for 208V, 230V, or 460V 3-phase power connections to match common commercial electrical site requirements.
Can this motor be used with a Variable Frequency Drive (VFD)?
Yes, the Baldor VEM3546 is typically rated for inverter link usage, though technicians should verify specific speed range ratios on the nameplate for constant or variable torque loads.
Is this a direct replacement for other 56C frame motors?
Matching the 1760 RPM and NEMA 56C footless physical dimensions is critical; as long as the horsepower and voltage requirements align, it serves as a robust replacement for standard 1HP units.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
