Baldor Motor VEM3219T Motor

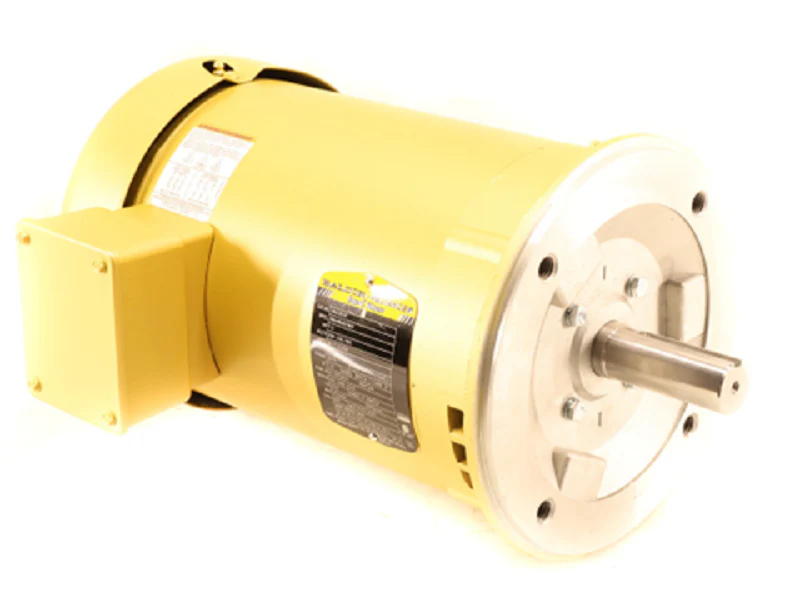

The Baldor-Reliance VEM3219T is a high-performance 7.5 HP NEMA Premium 184TC C-Face motor designed for demanding commercial and industrial HVACR applications. Operating at 3450 RPM, this three-phase TEFC (Totally Enclosed Fan Cooled) motor provides reliable service in environments where dirt, dust, and moisture are present. Built with a heavy-gauge steel frame and high-quality ball bearings, this unit thrives in constant speed pump and centrifugal fan applications. This 230/460V motor features Class F insulation and a 1.15 service factor, ensuring thermal stability during peak operation. The 184TC frame design allows for direct mounting to gear reducers and pumps, making it a versatile drop-in replacement for contractors performing motor retrofits. This general purpose motor is engineered for high energy efficiency and optimized torque, reducing operational overhead in continuous-duty cycles without sacrificing mechanical integrity.
Key Benefits- NEMA Premium Efficiency: Optimized for high energy savings and reduced operational heat in industrial HVAC motor systems.
- TEFC Enclosure: Protects internal components from contaminants, extending the service life in harsh mechanical rooms.
- C-Face Mounting: Simplifies installation for direct-coupled 3-phase motor applications in pumping and ventilation.
- Robust Build: Features a durable steel frame and high-grade bearings for minimal vibration and long-term mechanical reliability.
Is the VEM3219T compatible with variable frequency drives (VFDs)?
Yes, this motor is designed with an insulation system that handles the voltage spikes associated with Inverter Ready applications, provided the cable lengths and carrier frequencies are within NEMA MG1 Part 31 limits.
What are the wiring requirements for dual voltage operation?
This 230/460V motor utilizes a standard 9-lead connection layout, allowing contractors to configure the motor for low or high-voltage lines depending on the site’s electrical infrastructure.
Can this motor be mounted vertically?
While designed primarily for horizontal footed and C-face mounting, this 184TC motor can be used in various orientations if the bearing pre-load and moisture drains are properly managed for the specific application.
This item must be shipped via trucking. Please contact us for a freight quote.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $1,507.76
-65%$1,507.76
$527.72Baldor Motor VEM3219T Motor
The Baldor-Reliance VEM3219T is a high-performance 7.5 HP NEMA Premium 184TC C-Face motor designed for demanding commercial and industrial HVACR applications. Operating at 3450 RPM, this three-phase TEFC (Totally Enclosed Fan Cooled) motor provides reliable service in environments where dirt, dust, and moisture are present. Built with a heavy-gauge steel frame and high-quality ball bearings, this unit thrives in constant speed pump and centrifugal fan applications. This 230/460V motor features Class F insulation and a 1.15 service factor, ensuring thermal stability during peak operation. The 184TC frame design allows for direct mounting to gear reducers and pumps, making it a versatile drop-in replacement for contractors performing motor retrofits. This general purpose motor is engineered for high energy efficiency and optimized torque, reducing operational overhead in continuous-duty cycles without sacrificing mechanical integrity.
Key Benefits- NEMA Premium Efficiency: Optimized for high energy savings and reduced operational heat in industrial HVAC motor systems.
- TEFC Enclosure: Protects internal components from contaminants, extending the service life in harsh mechanical rooms.
- C-Face Mounting: Simplifies installation for direct-coupled 3-phase motor applications in pumping and ventilation.
- Robust Build: Features a durable steel frame and high-grade bearings for minimal vibration and long-term mechanical reliability.
Is the VEM3219T compatible with variable frequency drives (VFDs)?
Yes, this motor is designed with an insulation system that handles the voltage spikes associated with Inverter Ready applications, provided the cable lengths and carrier frequencies are within NEMA MG1 Part 31 limits.
What are the wiring requirements for dual voltage operation?
This 230/460V motor utilizes a standard 9-lead connection layout, allowing contractors to configure the motor for low or high-voltage lines depending on the site’s electrical infrastructure.
Can this motor be mounted vertically?
While designed primarily for horizontal footed and C-face mounting, this 184TC motor can be used in various orientations if the bearing pre-load and moisture drains are properly managed for the specific application.
This item must be shipped via trucking. Please contact us for a freight quote.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
The Baldor-Reliance VEM3219T is a high-performance 7.5 HP NEMA Premium 184TC C-Face motor designed for demanding commercial and industrial HVACR applications. Operating at 3450 RPM, this three-phase TEFC (Totally Enclosed Fan Cooled) motor provides reliable service in environments where dirt, dust, and moisture are present. Built with a heavy-gauge steel frame and high-quality ball bearings, this unit thrives in constant speed pump and centrifugal fan applications. This 230/460V motor features Class F insulation and a 1.15 service factor, ensuring thermal stability during peak operation. The 184TC frame design allows for direct mounting to gear reducers and pumps, making it a versatile drop-in replacement for contractors performing motor retrofits. This general purpose motor is engineered for high energy efficiency and optimized torque, reducing operational overhead in continuous-duty cycles without sacrificing mechanical integrity.
Key Benefits- NEMA Premium Efficiency: Optimized for high energy savings and reduced operational heat in industrial HVAC motor systems.
- TEFC Enclosure: Protects internal components from contaminants, extending the service life in harsh mechanical rooms.
- C-Face Mounting: Simplifies installation for direct-coupled 3-phase motor applications in pumping and ventilation.
- Robust Build: Features a durable steel frame and high-grade bearings for minimal vibration and long-term mechanical reliability.
Is the VEM3219T compatible with variable frequency drives (VFDs)?
Yes, this motor is designed with an insulation system that handles the voltage spikes associated with Inverter Ready applications, provided the cable lengths and carrier frequencies are within NEMA MG1 Part 31 limits.
What are the wiring requirements for dual voltage operation?
This 230/460V motor utilizes a standard 9-lead connection layout, allowing contractors to configure the motor for low or high-voltage lines depending on the site’s electrical infrastructure.
Can this motor be mounted vertically?
While designed primarily for horizontal footed and C-face mounting, this 184TC motor can be used in various orientations if the bearing pre-load and moisture drains are properly managed for the specific application.
This item must be shipped via trucking. Please contact us for a freight quote.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
