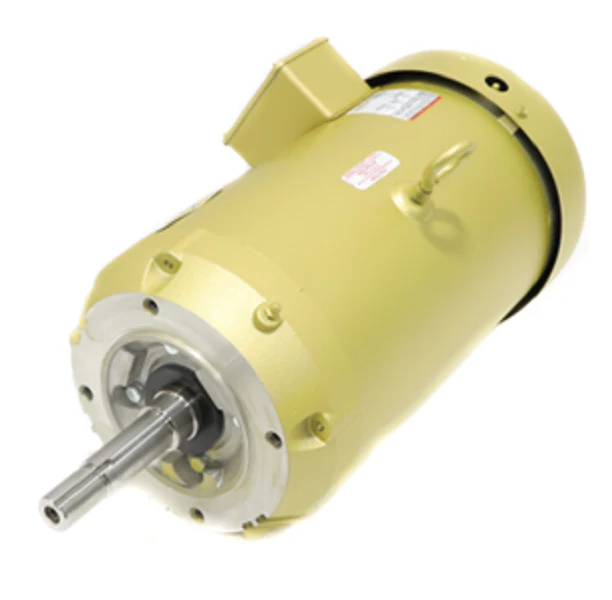

Baldor Motor VEJMM3615T Motor
The Baldor-Reliance VEJMM3615T is a high-performance 5HP close-coupled pump motor designed for demanding industrial fluid handling and HVACR circulation systems. Engineered with a 184JM frame and a totally enclosed fan cooled (TEFC) enclosure, this motor provides superior protection against dust, debris, and moisture, making it ideal for continuous-duty pumping applications. Operating at a synchronous speed of 1800 RPM (1750-1755 RPM full load), this three-phase AC motor utilizes NEMA Premium efficiency standards to reduce energy consumption and operational costs during long-service cycles.
Built for durability, the Baldor VEJMM3615T features heavy-gauge steel frame construction and ISR (Inverter Spike Resistant) copper windings, ensuring compatibility with variable frequency drives. The F1 mounting arrangement and oversized ball bearings with locked drive-end construction are specifically designed to handle the axial thrust loads common in close-coupled pump configurations. This 3642M design motor is inverter ready and maintains a 1.15 service factor, providing the thermal margin needed for reliable performance in fluctuating mechanical environments.
Key Benefits- NEMA Premium Efficient design minimizes energy loss and lowers total cost of ownership.
- ISR copper windings protect the motor against damaging voltage spikes from inverter use.
- TEFC enclosure (IP44 rated) ensures reliable operation in contaminated or outdoor environments.
- 184JM frame specifically engineered for direct-mounting to pump impellers and housings.
- Reversible rotation allows for flexible installation across various pump directional requirements.
Is the Baldor VEJMM3615T compatible with VFDs?
Yes, this motor is inverter ready and features moisture-resistant ISR windings designed to withstand the voltage stresses associated with modern pulse-width modulated (PWM) drives.
What are the voltage requirements for this 5HP motor?
The standard VEJMM3615T is rated for 230/460V at 60Hz. Note that variants such as the VEJMM3615T-5 are specifically wound for 575V systems; always verify your nameplate voltage before wiring.
Can this motor be used in vertical mounting applications?
While the F1 mounting is standard for horizontal setups, the locked DE (drive end) bearing helps manage shaft endplay, making it suitable for many close-coupled pump orientations required by contractors.
This item must be shipped via trucking. Please contact us for a freight quote.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
