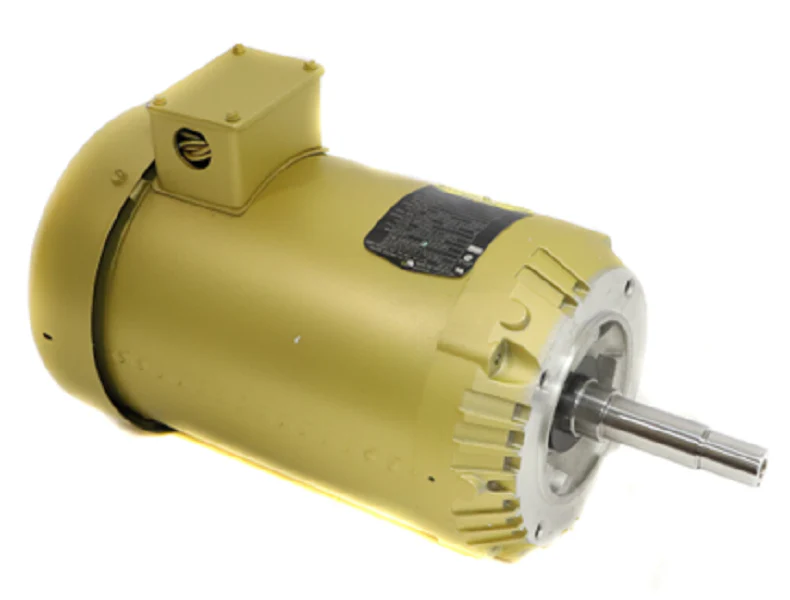

Baldor Motor VEJMM3611T Motor
The Baldor-Reliance VEJMM3611T is a high-performance 3 HP AC motor engineered for demanding commercial and industrial pumping applications. Operating at a synchronous speed of 1760 RPM, this three-phase motor is designed for 208-230/460V configurations at 60Hz. Built on a 182JM frame with a TEFC (Totally Enclosed Fan Cooled) enclosure, it provides superior protection against contaminants in mechanical rooms. The NEMA Premium efficiency rating ensures optimized power consumption while maintaining the torque required for steady-state fluid handling. Featuring Class F insulation and a 1.15 service factor, this motor handles thermal stress during continuous operation. As a close-coupled pump motor, it facilitates direct mounting to centrifugal pump impellers, reducing vibration and footprint. For contractors replacing failed units, the JM-mount flange ensures precise shaft alignment and compatibility with heavy-duty hydronic systems.
Key Benefits- NEMA Premium Efficiency: Reduces operational costs and heat generation in 24/7 pump applications.
- TEFC Enclosure: Protects internal windings from dust, moisture, and debris for extended service life.
- JM-Shaft Design: Features specific shaft dimensions for direct-mount pump compatibility and reduced mechanical run-out.
- Versatile Voltage: Supporting 230V and 460V 3-phase power provides flexibility for various site electrical infrastructures.
- Heavy-Duty Construction: Built with high-quality ball bearings and a rugged frame to withstand industrial mechanical stress.
What is the difference between a JM and JP frame motor?
The primary difference is the shaft length and diameter. The 182JM frame utilized by the VEJMM3611T features a shorter shaft compared to a JP frame, specifically intended for close-coupled centrifugal pumps where the impeller mounts directly to the motor shaft.
Can this motor be used with a Variable Frequency Drive (VFD)?
Yes, this three-phase industrial motor is compatible with VFDs for flow control, provided the drive is commissioned to match the motor's 208-230/460V nameplate data and thermal limits.
Does this motor require specialized lubrication?
This motor typically uses high-temperature grease. Always check the lubrication plate for specific grease types to ensure bearing longevity in high-ambient environments.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
