Baldor Motor VEJMM3212T Motor

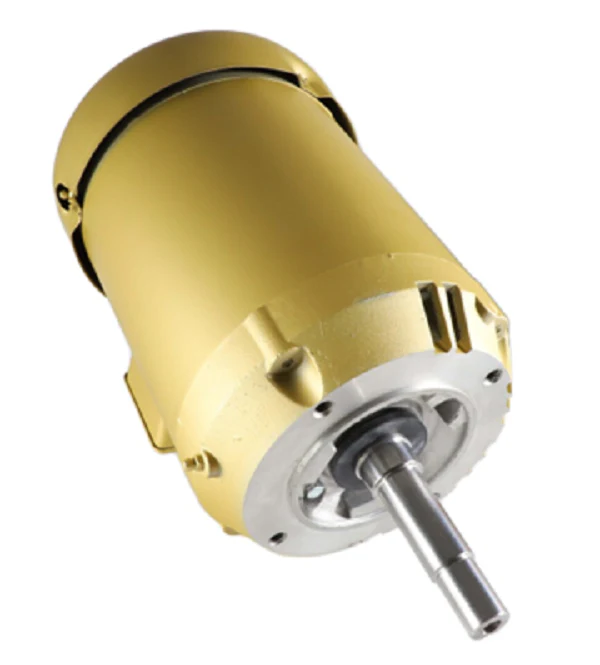

The Baldor-Reliance VEJMM3212T is a high-performance 5 HP three-phase motor engineered for demanding commercial and industrial pump applications. Operating at a 3450 RPM synchronous speed, this totally enclosed fan cooled (TEFC) motor features a 184JM frame with a C-Face and internal JP/JM shaft dimensions specifically designed for close-coupled centrifugal pumps. Built for versatility in the field, it supports 230/460V dual-voltage configurations and utilizes Class F insulation to withstand high internal operating temperatures. The heavy-duty NEMA premium efficient design ensures low vibration and long bearing life under continuous load. Contractors favor the VEJMM3212T for its rugged cast iron and steel construction, offering superior protection against moisture and contaminants in mechanical rooms. This AC pump motor provides the high torque and reliable startup performance required for circulating systems, making it a drop-in replacement for standard JM frame motors in HVACR service.
- High-Efficiency Performance: NEMA Premium efficient design reduces energy consumption and operational heat.
- Pump-Specific Chassis: 184JM frame features the precise shaft machining required for direct pump impeller mounting.
- Robust Environmental Protection: TEFC enclosure prevents dust and water ingress into the windings.
- Dual-Voltage Capability: Flexible 230V or 460V three-phase wiring options suit diverse job site power requirements.
- Enhanced Thermal Rating: Class F insulation system provides a high safety margin for demanding duty cycles.
Common Questions:
Can the VEJMM3212T be used with a Variable Frequency Drive (VFD)?
Yes, this motor is designed to handle the harmonics and speed variations associated with VFD operation in pumping systems.
Is this a direct replacement for 56J frame motors?
No, this motor uses a 184JM frame. Verify your pump's mounting plate and shaft diameter before installation, as the 184JM is larger than a standard 56J.
What are the orientation restrictions for this motor?
While designed for horizontal mounting, the JM frame configuration is commonly used in various pump orientations; however, ensure proper drainage for the TEFC enclosure if mounted vertically.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $1,055.14
-65%$1,055.14
$369.30Baldor Motor VEJMM3212T Motor
The Baldor-Reliance VEJMM3212T is a high-performance 5 HP three-phase motor engineered for demanding commercial and industrial pump applications. Operating at a 3450 RPM synchronous speed, this totally enclosed fan cooled (TEFC) motor features a 184JM frame with a C-Face and internal JP/JM shaft dimensions specifically designed for close-coupled centrifugal pumps. Built for versatility in the field, it supports 230/460V dual-voltage configurations and utilizes Class F insulation to withstand high internal operating temperatures. The heavy-duty NEMA premium efficient design ensures low vibration and long bearing life under continuous load. Contractors favor the VEJMM3212T for its rugged cast iron and steel construction, offering superior protection against moisture and contaminants in mechanical rooms. This AC pump motor provides the high torque and reliable startup performance required for circulating systems, making it a drop-in replacement for standard JM frame motors in HVACR service.
- High-Efficiency Performance: NEMA Premium efficient design reduces energy consumption and operational heat.
- Pump-Specific Chassis: 184JM frame features the precise shaft machining required for direct pump impeller mounting.
- Robust Environmental Protection: TEFC enclosure prevents dust and water ingress into the windings.
- Dual-Voltage Capability: Flexible 230V or 460V three-phase wiring options suit diverse job site power requirements.
- Enhanced Thermal Rating: Class F insulation system provides a high safety margin for demanding duty cycles.
Common Questions:
Can the VEJMM3212T be used with a Variable Frequency Drive (VFD)?
Yes, this motor is designed to handle the harmonics and speed variations associated with VFD operation in pumping systems.
Is this a direct replacement for 56J frame motors?
No, this motor uses a 184JM frame. Verify your pump's mounting plate and shaft diameter before installation, as the 184JM is larger than a standard 56J.
What are the orientation restrictions for this motor?
While designed for horizontal mounting, the JM frame configuration is commonly used in various pump orientations; however, ensure proper drainage for the TEFC enclosure if mounted vertically.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
