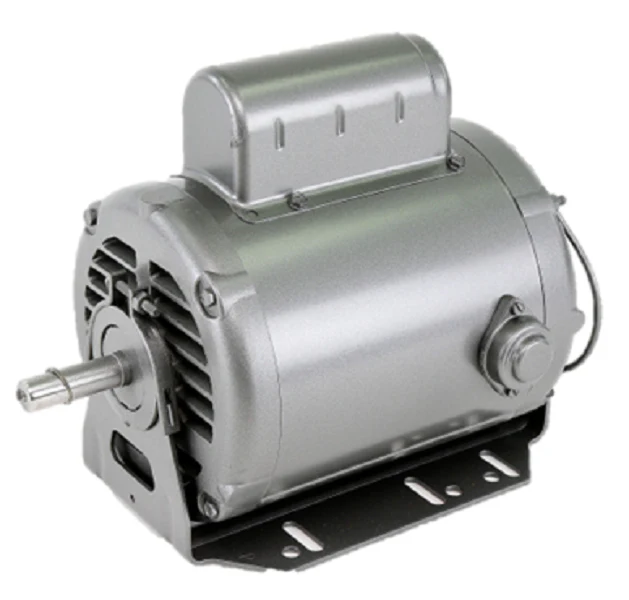

Baldor Motor RL1310A Motor
The Baldor-Reliance RL1310A is a high-performance 1 HP general purpose motor engineered for reliability in commercial HVACR and industrial pump applications. Operating at a 1725 RPM base speed (1800 RPM synchronous), this single-phase AC motor is built on a 56H frame with an Open Drip Proof (ODP) enclosure, making it ideal for clean, indoor environments where maximum airflow is required to maintain optimal winding temperatures. This capacitor-start induction motor utilizes a 115/230V dual-voltage configuration, pulling 12.8/6.4 amps at full load. The ball bearing construction and heavy-duty steel band frame ensure structural integrity under constant radial loads. Designed for NEMA 56H mounting versatility, the RL1310A provides the high starting torque necessary for belt-driven fans, blowers, and centrifugal pumps, ensuring consistent mechanical output in demanding 60Hz cycles.
Technical Key Benefits
- High Starting Torque: Optimized capacitor-start design handles heavy initial loads without tripping breakers.
- NEMA 56H Frame: Features a resilient base and standard shaft dimensions for seamless drop-in replacement.
- ODP Enclosure: Engineered for superior heat dissipation in dry, well-ventilated mechanical rooms.
- Dual Voltage Versatility: Field-wireable for 115V or 230V single-phase power supplies to match site-specific electrical service.
- Industrial Durability: Balanced rotor and premium ball bearings reduce vibration and secondary wear on couplings and pulleys.
Common Installation Questions
What is the difference between a 56 and 56H frame for this motor?
The 56H frame used on the RL1310A features mounting holes that accommodate both standard 56 and 56H bolt patterns, providing greater flexibility for various mounting brackets compared to a standard 56 frame.
Can the rotation of the RL1310A be reversed in the field?
Yes, as a standard NEMA design, the rotation is electrically reversible by swapping the internal lead connections as specified on the motor nameplate wiring diagram.
Is this motor suitable for use with a Variable Frequency Drive (VFD)?
This is a single-phase induction motor; it is designed for across-the-line starting and constant speed operation. For variable speed requirements, a three-phase motor with an inverter-rated insulation system is recommended.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
